DAB+ extension for existing car radio

DAB212STD

Simple DAB+ integration into your existing FM-RDS car radio

request product find a merchant

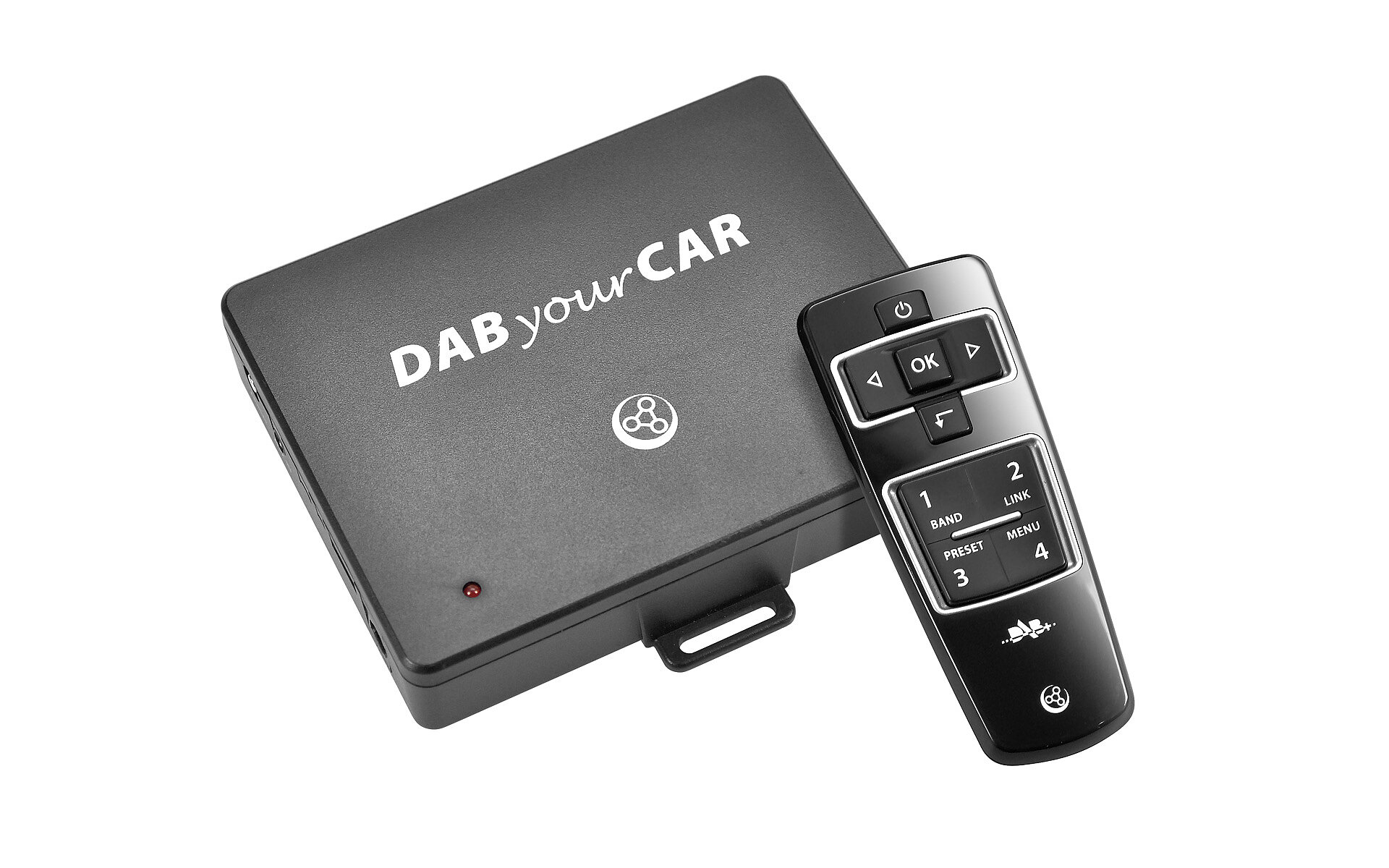

  • Digital radio is simply better. With the DAB212STD DAB+yourCAR add-on box from Axion, any RDS radio can now receive the DAB+ digital radio standard for little money. This gives you access to a large selection of DAB+ stations and allows you to enjoy digital audio quality via your existing car radio. An additional aux-in socket allows you to connect an external audio source such as an MP3 player/iPod®.

    Ingeniously simple: The DAB212STD is easy to install thanks to its wireless connection to the car radio via an FM transmitter.
    The DAB+ box can be fully remote-controlled via a radio remote control. The station names and system information are displayed on the existing radio via RDS. The auto-scan function with AFC frequency change technology always finds a free FM frequency automatically.

    Add DAB+ reception to your existing car radio now!

    • Universal retrofitting
    • Simple DAB+ integration into your existing FM-RDS car radio
    • Digital sound quality
    • Station memory with quick selection
    • Aux-in socket for external sources
    • DAB/DAB+ car tuning
    • Radio remote control
    • 4 buttons with 12 station presets
    • Sound adjustment via the car radio
    • Station display on the radio display
    • Menu settings
    • Simple installation
    • No visible cable routing
    • Optimised active DAB disc antenna



    Further information on DAB+ can be found on the official digitalradio website

    <link digitalradio.de _blank button>learn more

  • Main unit:

    WorldDMB Profile 1 compliant
    Enables decoding of all DAB transmission modes 1-4
    DAB RF frequency bandwidth Band III: 174 MHz ~ 240 MHz
    DAB RF sensitivity Band III: -98dBm ~ -100dBm
    Antenna input impedance 50Ω
    Selectivity to distant transmitters 42dB (min)
    Neighbouring channel selectivity 30db (min)
    FM transmission bandwidth 87.6 MHz ~ 107.9 MHz
    Power consumption 3,6 W
    Power supply 11-16 V DC
    Operating temperature -20° ~ +70°
    Storage temperature -40° ~ +85°
    Dimensions 112(L) x 102(W) x 23(H) mm
    Weight 120,4 g



    Radio remote control:

    Frequency 2.479GHz
    Modulation GFSK
    Battery CR2032
    Dimensions 113(L) x 45(W) x 12(H) mm
    Weight 36,2 g



    • DAB yourCar Box
    • Radio remote control
    • Adhesive windscreen antenna (ADA-401)
Technical changes and errors excepted.
