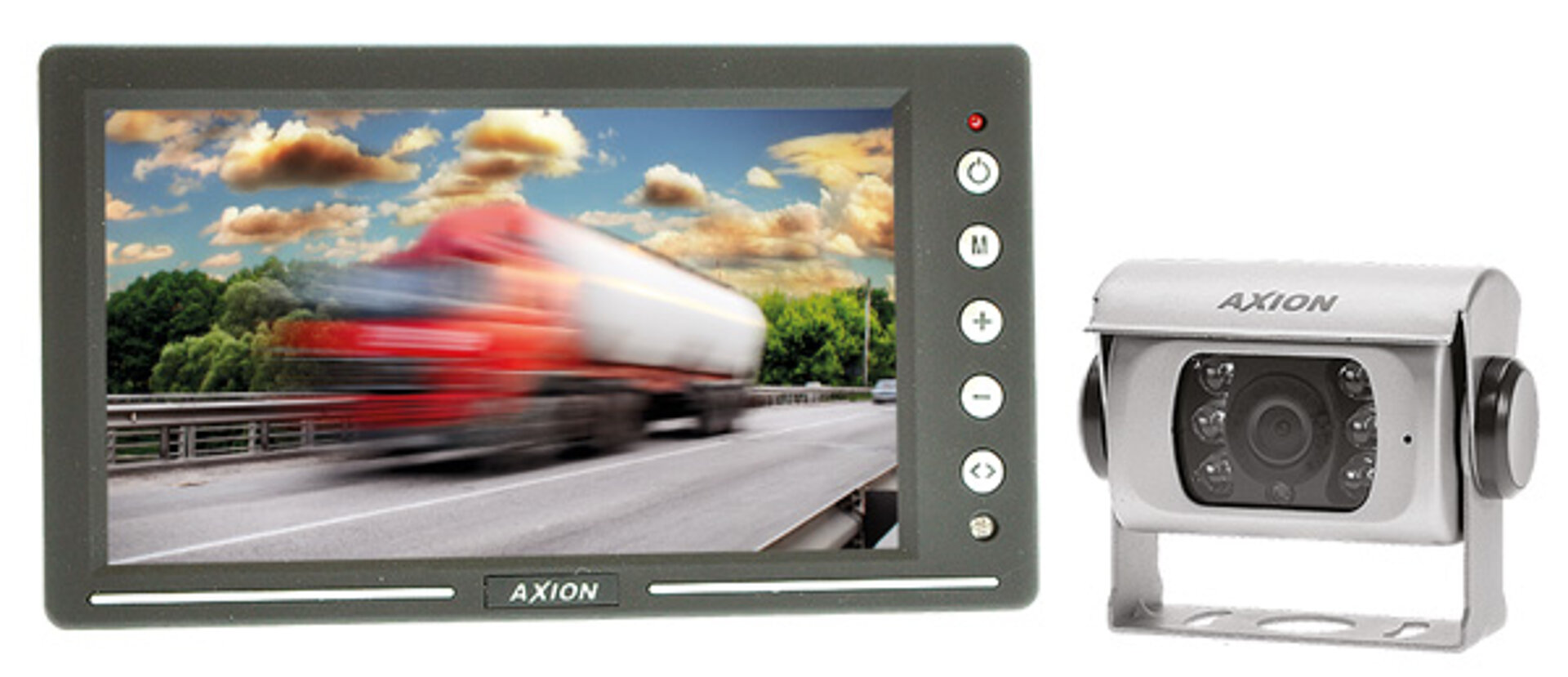

7-inch reversing video system

CRV 7005 Set

Complete reversing video system consisting of:
7" (17.78 cm) LCD-TFT reversing monitor, colour reversing camera incl. monitor stand, 20 m connection cable.
Easy to install and connect - plug & play. Suitable for 12 V & 24 V use

request product find a merchant

  • CRV 7005M - Monitor

    • 7-inch reversing monitor with 2 camera inputs
    • Operating menu in 7 languages
    • High resolution
    • 2 independent switching lines (trigger)
    • Power on with voltage
    • Priority optionally adjustable
    • Day/night switching
    • Switchable guide lines

    DBC 114073 Basic - reversing camera:

    • Robust colour reversing camera
    • Camera viewing angle: 124°
    • Camera protection class: IP69K
    • 6 x IR LED residual light amplifier for better visualisation in the dark (0.01 lux)

  • CRV 7005M

    Screen diagonal7 inch ( 17.78 cm)
    screen resolution1,152,000 pixels
    Screen brightness500 cd/m2
    Viewing angleright/left 80° , top/bottom 40/60°
    Image reflectionYes
    Picture standardPAL / NTSC (automatic
    Day/night switchingYes, sensor
    LoudspeakerYes, integrated
    Video inputs2x AXION 4p DIN
    Signal inputCVBS(FBAS) 1 Vpp / 75 Ohm
    Control lines (trigger)2
    Power supply12/24 V
    Power consumption< 7W
    Operating temperature-20 °C to +70 °C
    Storage temperature-30°C to +80°C
    Vibration resistance> 5G
    Guide linesyes, can be displayed
    OSD (operating menu)7 languages
    Power-on modeYes, adjustable
    Housing protection classIP 54
    Dimensions (LxWxH)200x115x29 mm
    Weightapprox. 400 g
    Test marks, certificatesECE-R10



    DBC 114073 Basic

    Image sensor1.3 megapixel Sony colour CMOS chipset
    Resolution800 TVL lines
    Viewing angle124° ( diagonal)
    Focal length2.8mm
    Light sensitivity0.001 Lux
    Infrared LEDsYes, 6 pieces
    Brightness equalisationYes
    MicrophoneYes
    Video signalCVBS(FBAS) 1 Vpp / 75 Ohm
    Video systemPAL
    Image mirroringYes
    ConnectionMINAX
    Housing protection classIP69K
    Salt and chemical testedYes
    Operating temperature-30 °C to +80 °C
    Storage temperature-40 °C to +85 °C
    Vibration resistance> 6G
    Shock resistance50 G
    Power supply12 V
    Power consumptionmax. 2.5 W
    Dimensions (W x H x D)76 x 73 x 85 mm
    Weightapprox. 360 g
    Test marks, certificatesECE-R10
    • CRV 7005M incl. stand and connection cable set
    • DBC 114073 Basic
    • WPC 6 - 20m cable line
  • Download
Technical changes and errors excepted.
