7" LCD-TFT AHD monitor for camera systems

CRV 7105M HD

7" (17.8 cm) AHD reversing monitor with 2 camera inputs
Easy to install and connect (plug & play) - Suitable for 12 V & 24 V use

request product find a merchant
    • High-resolution 7" (17.8 cm) AHD reversing monitor with 2 camera inputs
    • Easy to install and connect (plug & play)
    • Suitable for 12 V & 24 V use
    • Operating menu in 7 languages
    • Switchable guide lines
    • Dimmable button lighting
    • 2 independent switching lines (trigger)
    • Power on with voltage
    • Built-in loudspeaker
    • Priority optionally adjustable
  • Screen diagonal7 inch
    resolution1024 * 3 (RGB) *600
    Screen brightness500 cd/m2
    Viewing angler/l :75°/75° , o/u: 70/75 °
    Image mirroringYes
    Picture standardAHD, PAL / NTSC (automatic)
    Day/night switchingYes, sensor
    LoudspeakerYes
    Camera input2x AXION 4p DIN
    Control lines (trigger)2
    Power supply12/24 V
    Operating temperature-20 °C to + 70 °C
    Storage temperature-30 °C to + 80 °C
    Guide linesYes (can be switched on)
    OSD (operating menu)7 languages
    Power-on modeYes
    Housing protection classIP 54
    Dimensions (LxWxH)200x115x29 mm
    Weightapprox. 400 g
    Test marks, certificatesECE-R10, CE, ROHS

  • CRV 7105M HD - Monitor

    Connection cable set

    Monitor stand

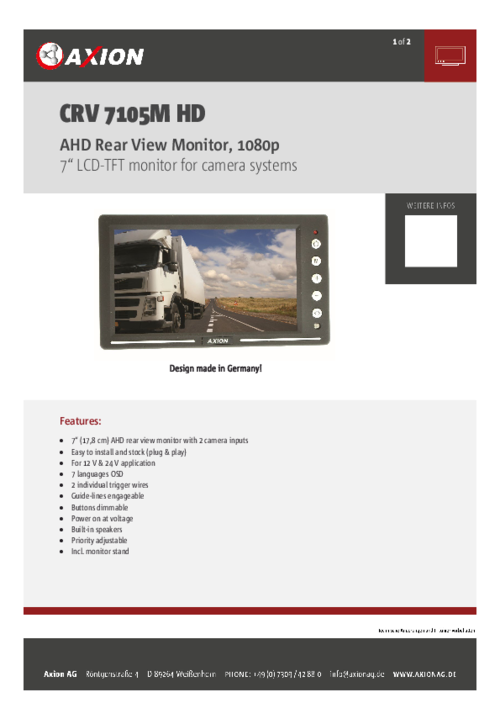

  • Download
Technical changes and errors excepted.
