7" LED AHD monitor for camera systems

CRV 7103M

7" (17.8 cm) AHD reversing monitor with 3 camera inputs, IP64 splash-proof.
Easy to install and connect (plug & play) - Suitable for 12 V & 24 V use

request product find a merchant

  • Professional 7-inch AHD monitor with 3 inputs for demanding applications. IP64 splash-proof design.

    • 7" (17.8 cm) rear view monitor with 3 inputs
    • Supports AHD (up to 1080P & CVBS (PAL/NTSC)
    • Easy to install and connect (plug & play)
    • Suitable for 12 V & 24 V use
    • Operating menu in 9 languages
    • 3 camera inputs (AXION MiniDIN) & independent switching inputs (trigger)
    • Display modes: Split/PIP/Mirror/Normal
    • Switchable guide lines
    • Integrated loudspeaker
    • IP64 splash-proof
    • Incl. stand & attachable sun visor
  • Screen diagonal7 inch
    Screen resolution1024 x (RGB) x 600 pixels
    Screen brightness500 cd/m2
    Viewing angler/l 75°, u/d 70/75°
    Image mirroringyes (normal/mirror)
    Picture standardHD (1080p/720p), CVBS PAL/NTSC (auto)
    Day/night switchingyes, senosor
    Loudspeakeryes
    Camera input3x AXION 4p MiniDIN
    Control lines (trigger)3
    Power supply10-32 Vdc
    Operating temperature-20 °C ~ + 70 °C
    Storage temperature-30 °C ~ + 80 °C
    Guide linesyes (can be switched on)
    OSD (operating menu)9 languages
    Power-on modeYes
    Housing protection classIP64
    Dimensions (LxWxH)181x122x24 mm
    weightapprox. 450g
    Test marks, certificatesCE, ECE-R10
    • CRV 7103M Monitor
    • Connection cable set
    • Sun visor (clip-on)
    • Operating instructions

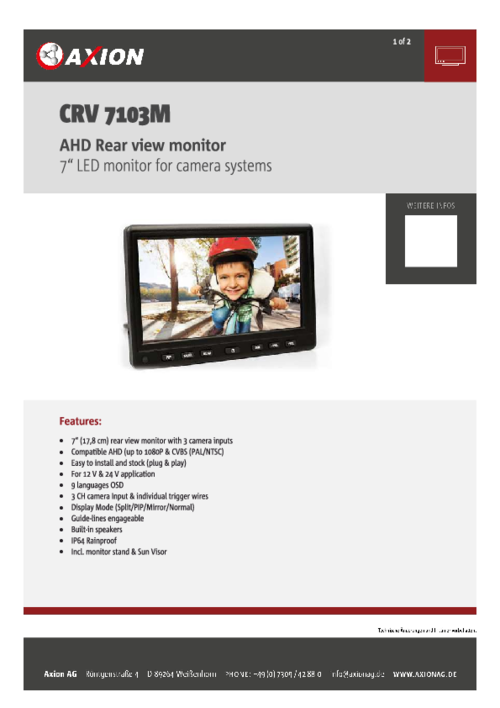

  • Download
Technical changes and errors excepted.
