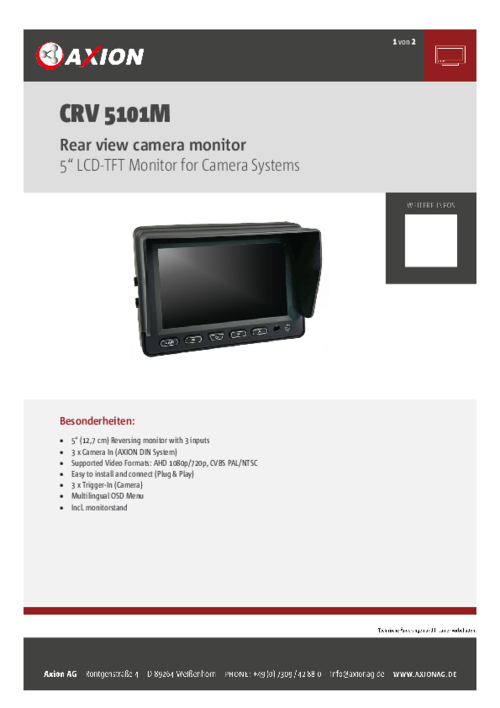

5" digital LCD monitor for camera systems

CRV 5101M

5" (12.7 cm) AHD reversing monitor with 3 camera inputs.
Easy to install and connect (plug & play) - Suitable for 12 V & 24 V use

request product find a merchant
    • 5" (12.7 cm) reversing monitor with 3 inputs
    • 3 x camera in (AXION DIN system)
    • Supported video signals: AHD 1080p/720p, CVBS PAL/NTSC
    • Easy to install and connect (plug & play)
    • 3 x trigger input (camera)
    • Multilingual OSD menu
    • Glare protection / sun visor pluggable
    • Incl. monitor stand
  • Screen diagonal5 inch ( 12,7cm)
    resolution800 * 3 (RGB) * 480
    Screen brightness500 cd/m2
    Viewing angler/l :85° , o/u: 85°
    Image reflectionYes
    Picture standardAHD, PAL / NTSC (automatic)
    Day/night switchingYes, sensor
    LoudspeakerYes
    Camera input3x AXION 4p Mini-DIN
    Control lines (trigger)3
    Power supply12/24 V
    Operating temperature-20 °C to + 70 °C
    Storage temperature-30 °C to + 85 °C
    Guide linesYes (can be switched on)
    OSD (operating menu)Multilingual
    Power-on modeYes
    Housing protection class-
    Dimensions (LxWxH)145x99x26 mm
    weightapprox. 400 g
    Test marks, certificatesECE-R10, CE, ROHS
    • Monitor
    • Connection cable set
    • Sun visor
    • Instruction manual
  • Download
    Download
Technical changes and errors excepted.
