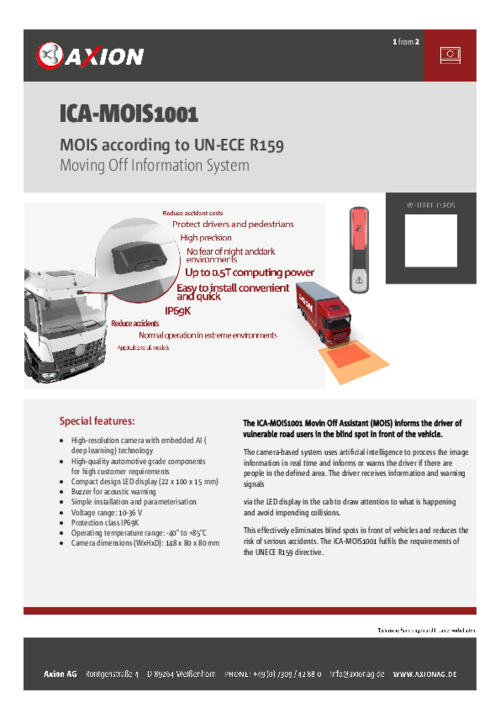

ICA-MOIS1001

Start-off assistant in accordance with UN ECE R159 (GSR II - General Safety Regulation)
MOIS ( Moving Off Information System)

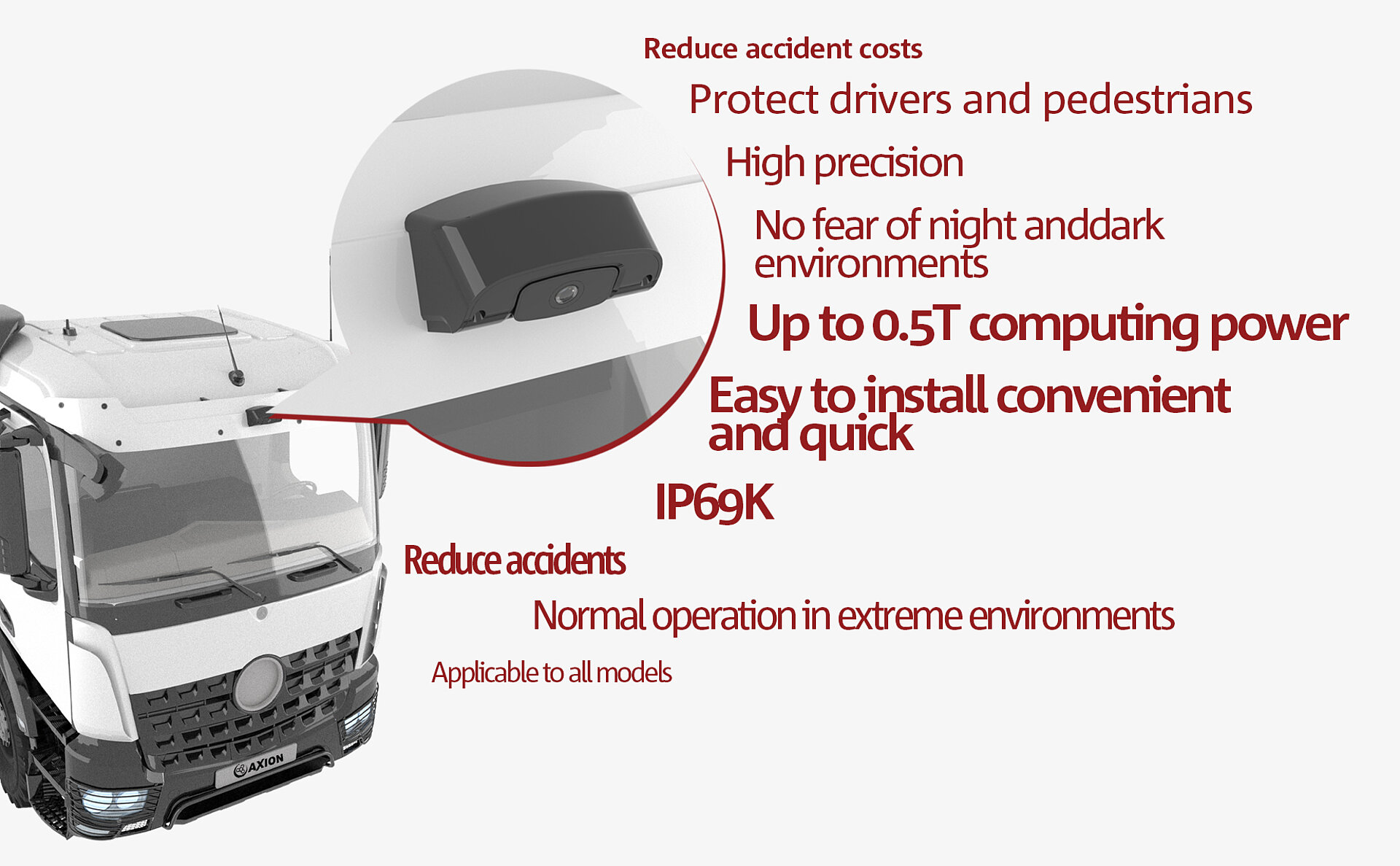

The ICA-MOIS1001 collision warning system (MOIS) informs the driver about vulnerable road users in the blind spot in front of the vehicle.
The camera-based system uses artificial intelligence to process the image information in real time and informs or warns the driver if there are people in the defined area. The driver receives information and warning signals via the LED display in the cab to focus their attention on what is happening and avoid impending collisions.
This effectively eliminates blind spots in front of vehicles and reduces the risk of serious accidents. The ICA-MOIS1001 fulfils the requirements of the UNECE R159 directive.

Special features:

• High-resolution camera with embedded AI (deep learning) technology
• High-quality automotive grade components for high customer requirements
• Compact design LED display (22 x 100 x 15 mm)
• Buzzer for acoustic warning
• Simple installation and parameterisation
• Voltage range: 10-36 V
• Protection class IP69K
• Operating temperature range: -40° to +85°C
• Camera dimensions (WxHxD): 148 x 80 x 80 mm
• ECE R159 compliant (successful TÜV performance test)
