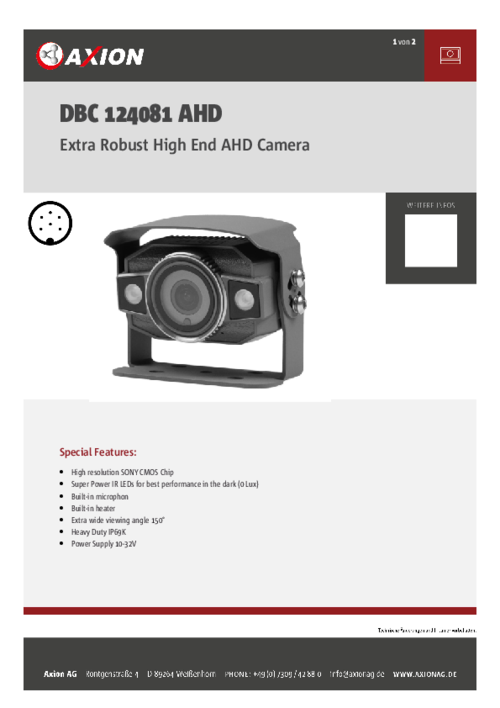

Extra Robust High END AHD Camera
DBC 124081 AHD
Compact heavy-duty colour camera with AHD (FullHD) resolution
Ideal for use on construction machinery, agricultural machinery, off-road vehicles, etc.
-
- High-resolution 2.1 megapixel SONY CMOS image sensor
- AHD video signal (FHD: 1920 x 1280) with >1200 lines resolution
- Large field of view 150°
- Super Power IR LEDs for best performance in the dark (0 lux)
- Built-in microphone
- Integrated heating
- Normal/mirror switching
- Vibration/ Shock: 10G / 100 G
- Heavy Duty IP69K protection class
- Operating temperature: -40° to +85°C
- 10-32 Vdc power supply
- Dimensions (W × H × D): 78 × 45 × 48 mm
-
- High-resolution 2.1 megapixel SONY CMOS image sensor
- AHD video signal (FHD: 1920 x 1280) with >1200 lines resolution
- PAL/NTSC
- High light sensitivity up to 0 lux thanks to 2x Super Power LEDs
- Viewing angle: 148° diagonal, 128° horizontal, 75° vertical
- Built-in microphone
- Signal / noise ratio: 50 dB
- Automatic, electronic iris
- Vibration resistant up to 10 G
- Shock resistance 100 G
- Power consumption: >500mA
- Operating temperature: -40 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (WxHxD) 78 x 45 x 48 mm
- Weight: approx. 250g
-
- DBC 124081 AHD camera
- Camera holder
- 20m camera cable (WPC6)
- Instruction manual
Technical changes and errors excepted.
