Heavy-duty shutter AHD reversing camera

DBC 1204067 SAHD

Motorised AHD colour camera with protective flap (shutter) and cleaning/wiping function.

request product find a merchant
    • 1.23 megapixel SONY CMOS image sensor
    • AHD video signal (HD resolution 720p) >1000 lines resolution
    • Motorised colour camera with protective flap with rubber cleaning wiper
    • Large field of view with 150°
    • Highest moisture protection with IP69K
    • Good visibility even in the dark (0 lux)
    • Built-in microphone
    • Normal/mirror switching
    • Automatic heating
    • Incl. 20 m connection cable

    • Optional accessories: Shutter control box CCB-267SAHD
  • Image sensorSony 1.23 megapixel chipset
    TV linesmore than 1000
    Built-in microphoneyes
    protection classIP 69K
    Normal/mirror switchingyes
    Viewing angle146° diagonal, 116° horizontal, 93° vertical
    Wiper function when opening and closing the flapyes
    Signal / noise ratio>50 dB (AGC off)
    Waterproof aluminium housingYes
    Automatic, electronic irisYes
    High light sensitivityup to 0 lux thanks to 8 IR LEDs
    Vibration resistantup to 10 G
    Shock resistance100 G
    Power supply12 V
    Power consumptionless than 450 mA
    Operating temperature-40 °C to +85 °C
    Dimensions (WxHxD)104 x 57 x 61 mm
    weightapprox. 480 g
    CertificationCE,ROHS,REACH, ECE-R10
    • DBC 124067 SHD - Rear view camera
    • WPC 6 (20m connection cable)

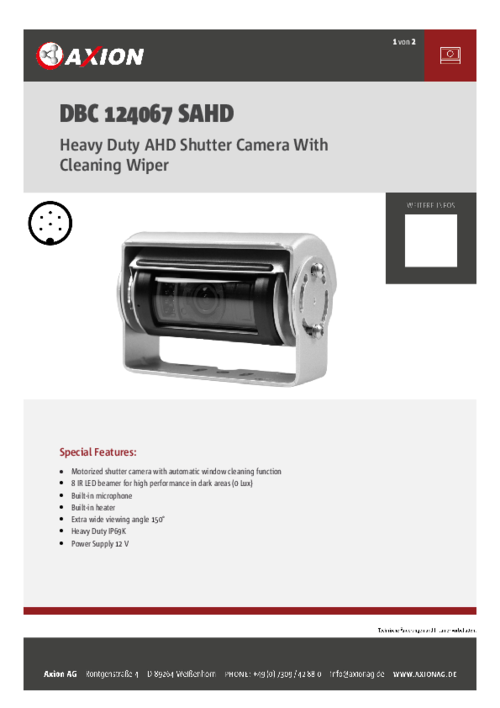

  • Download
