Compact colour ball camera

DBC 114074 K

Ideal as a side/front/rear view camera, as it is easy to install and can be adjusted in any direction.

request product find a merchant
    • Compact ball-type camera for use as a front/side and/or reversing camera
    • Plastic camera mount prevents signal interference between camera and vehicle
    • Ideal as a side/front/rear view camera, as it is easy to install and can be adjusted in any direction.
    • 9 infrared LEDs for uniform illumination in the dark (max. 6~8 m)
    • Day/night sensor for automatically switching the IR LEDs on and off
    • Weatherproof aluminium pressure housing
    • High light sensitivity (0.01 lux)
    • 124° viewing angle
    • Built-in microphone
    • Adjustable mirror/normal image
    • Automatic electronic iris
    • Resistant to vandalism and moisture (IP69K)

    • Also available as NTSC version!
  • Image sensor1.3 megapixel Sony CMOS
    resolution1.3 million pixels, 1280H, 800TVL
    Viewing angle124° ( diagonal)
    Focal length2.8mm
    Light sensitivity0.01 lux
    IR-LED projector9
    Microphoneyes
    Video systemPAL
    Image mirroringyes
    Guiding linesno
    ConnectionMINAX
    Protection classIP 69K
    Operating temperature-30 °C to +80 °C
    Vibration resistance10 G
    Power supply12 V
    Power consumptionmax. 2.5 W
    Dimensions (W x H x D)50x52 mm
    weightapprox. 154 g
    Test marks, certificatesECE-R10
    • DBC 114074 K - Camera
    • WPC 6 (20 m connection cable)

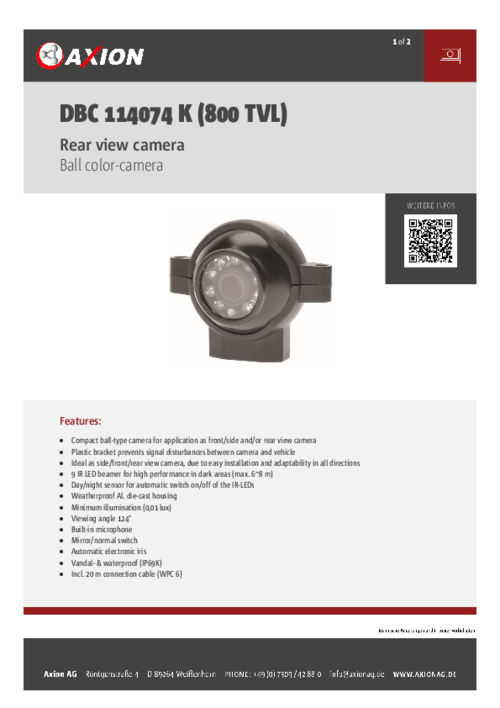

  • Download
Technical changes and errors excepted.
