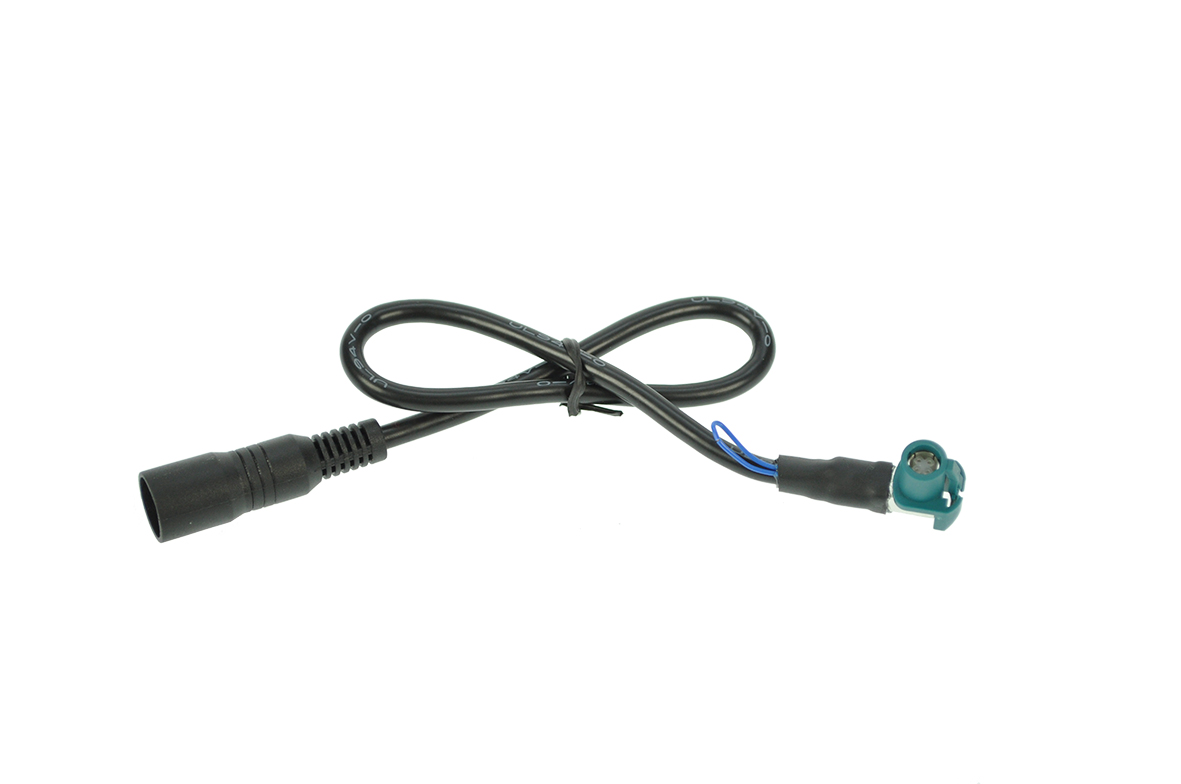

Adapter for Scania Premium Infotainment 7"
CA-SCA 3
Interface for connecting an AXION camera to the Scania Premium Infotainment System (AUS4) with 7-inch display

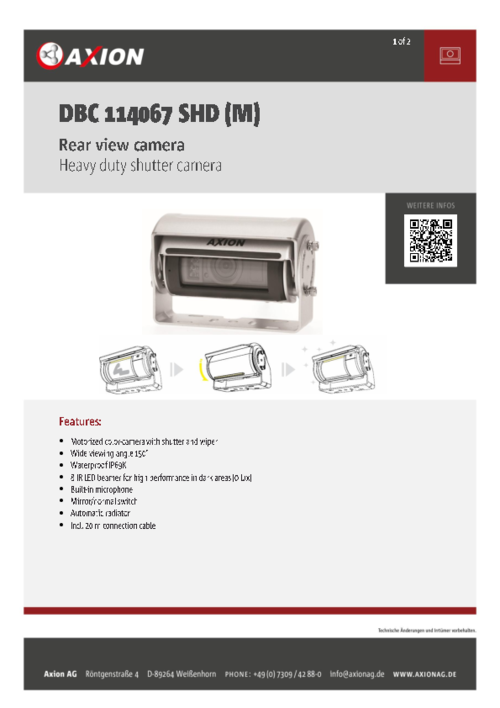

Heavy-duty shutter reversing camera
DBC 114067 SHD
Motorised colour camera with protective flap (shutter) and cleaning/wiping function.
-
- Motorised colour camera with protective flap with rubber cleaning wiper
- Large field of view with 150°
- Maximum moisture protection with IP69K
- Good visibility even in the dark (0 lux)
- Built-in microphone
- Normal/mirror switching
- Automatic heating
- Incl. 20 m connection cable
-
Image sensor Sony 1.23 megapixel chipset TV lines more than 700 Built-in microphone yes protection class IP 69K Normal/mirror switching yes Viewing angle 146° diagonal, 116° horizontal, 93° vertical Wiper function when opening and closing the flap yes Signal / noise ratio >46 dB (AGC off) Waterproof aluminium housing Yes Automatic, electronic iris Yes High light sensitivity up to 0 lux thanks to 8 IR LEDs Vibration resistant up to 10 G Shock resistance 100 G Power supply 12 V Power consumption less than 200 mA Operating temperature -40 °C to +85 °C Dimensions (WxHxD) 104 x 57 x 55 mm Weight approx. 480 g Certification CE,ROHS,REACH, ECE-R10 -
- DBC 114067 SHD - Rear view camera
- WPC 6 (20m connection cable)
- Shutterbox (EMC10S32V)
Technical changes and errors excepted.
