Reversing camera with motorised protective flap

DBC 114065 S1

Waterproof colour camera with motorised shutter for outdoor installation.

request product find a merchant
    • 1/3'' CMOS 1.23 megapixel colour camera with motorised shutter to protect against contamination
    • With control box (for opening and closing the shutter)
    • 6 infrared LEDs for uniform illumination in the dark (max. 3 m)
    • High light sensitivity (0 lux)
    • Mirror/normal image function
    • Electronic brightness equalisation
    • Automatic electronic iris
    • Wide viewing angle (130°)
    • Waterproof microphone
    • Resistant to vandalism & moisture (IP69K)
    • Incl. 20 m connection cable (394 IP)
  • Image sensor 1.23 Megapixel High Resolution CMOS Senosor
    IR-LED projector 6
    Light sensitivity 0 lux
    Resolution >700 TV lines
    Viewing angle 130°
    Protection class IP 69K
    Power supply 12 V
    Power consumption max. 3 W
    Vibration resistant up to 10 G
    Shock resistance 100G
    Signal/noise ratio 46 dB
    Operating temperature -40 °C to +85 °C
    Dimensions (W x H x D) 110x85x75 mm
    Weight approx. 390 g
    • DBC 114065 S1 - Rear view camera
    • 394 IP (20 m connection cable)
    • Shutterbox (EMC10S32VA)

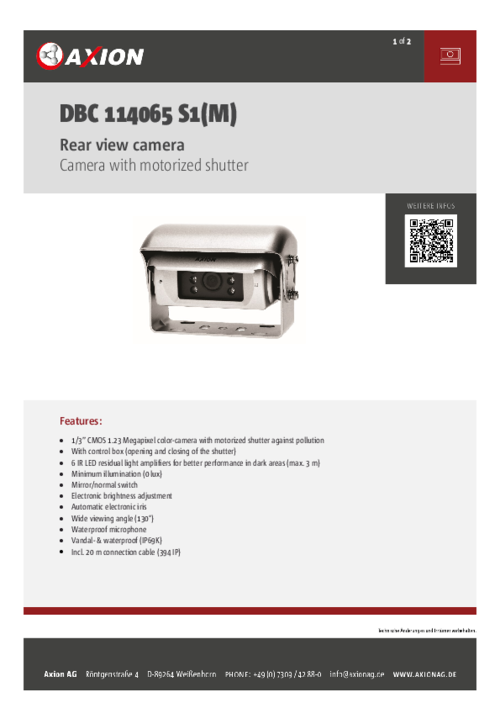

  • Download
Technical changes and errors excepted.
