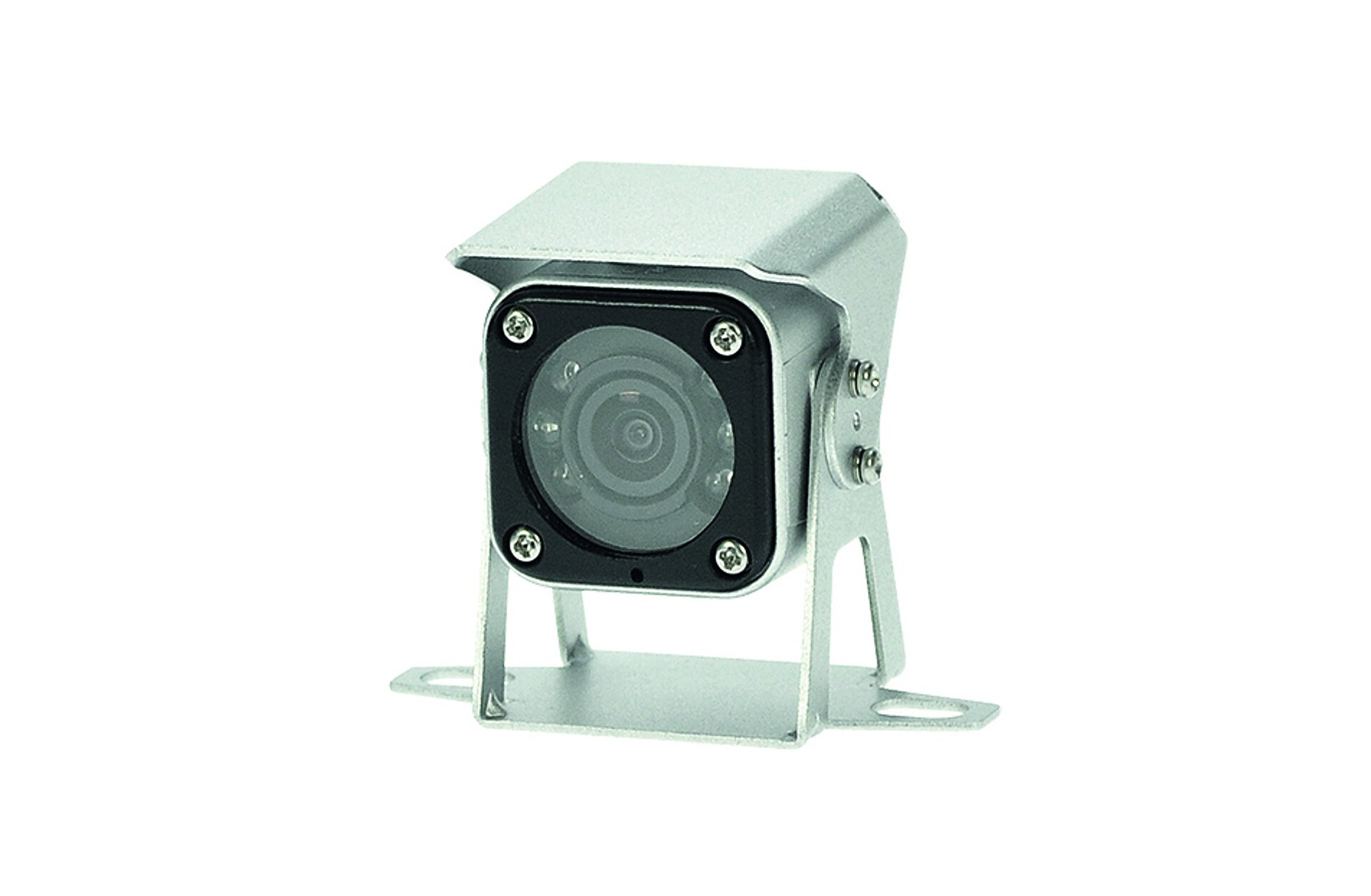

High end mini colour camera

DBC 114041 M

1.23 megapixel CMOS mini colour camera for demanding applications.
Special mounting system for use as a front/rear/side camera.
Infrared LEDs switch on automatically in the dark.

request product find a merchant
    • 1.23 megapixel CMOS mini colour camera for demanding applications
    • Special mounting system for use as a front/rear/side camera
    • Infrared LEDs switch on automatically in the dark
    • Requires low light supply (0 lux)
    • Built-in microphone
    • Wide field of vision 120° (diagonal)
    • Resistant to vandalism/moisture IP69K
    • Vibration resistance: 7 G/shock: 100 G
    • Temperature range: -40 °C to +85 °C
    • Power supply 12 V DC


    • Also available as NTSC version
  • Image sensor 1.23 megapixel Sony CMOS
    resolution >700 TVL
    Viewing angle 123° ( H: 92° / V: 81°)
    Light sensitivity 0 Lux
    IR-LED projector yes
    Microphone yes
    Video system PAL
    Image mirroring yes
    Guiding lines no
    Connection MINAX
    Protection class IP 69 K
    Operating temperature -40 °C to + 85 °C
    Vibration resistance 10G
    Shock resistance 100 G
    Power supply 12 V
    Dimensions (W x H x D) 30x30x36.7 mm
    Test marks, certificates ECE-R10



  • DBC 114041 M - Camera

    WPC 6 (20m connection cable)

Technical changes and errors excepted.
