Colour pin reversing camera

DBC 114034 P

Waterproof colour camera ideal for installation
Resistant to vandalism & moisture (IP69K)
150° wide-angle lens
12 V power supply

request product find a merchant
    • Waterproof colour camera ideal for installation
    • Very bright
    • Good visibility in the dark down to 0.1 lux
    • 150° wide-angle lens
    • Resistant to vandalism & moisture (IP69K)
    • Mirror/normal image function
    • Electronic brightness adjustment
    • Automatic electronic iris
    • Weatherproof die-cast aluminium housing with distance, angle and screw ring
  • Image sensor1.23 megapixel Sony CMOS
    resolution1.23M pixels, more than 700 TV lines
    Viewing angle150°
    Light sensitivity0.1 lux
    Video systemPAL
    Guiding linesno
    ConnectionAXION DIN 4 PIN watertight screw connection
    Protection classIP 69K
    Operating temperature-40 °C to + 85 °C
    Vibration resistance10 G
    Power supply12 V
    Power consumption100 mA
    Dimensions (W x H x D)30 x 60 mm
    weightapprox. 80 g
    Test marks, certificatesECE-R10
    • DBC 114034 P - Camera
    • WPC 5 (20 m connection cable)

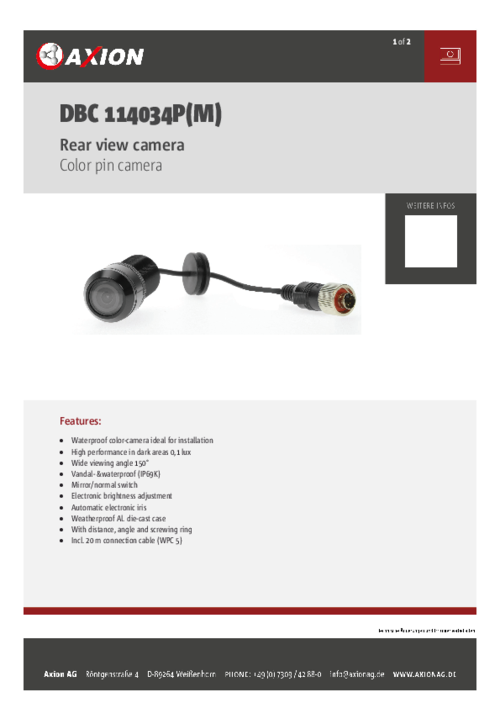

  • Download
Technical changes and errors excepted.
