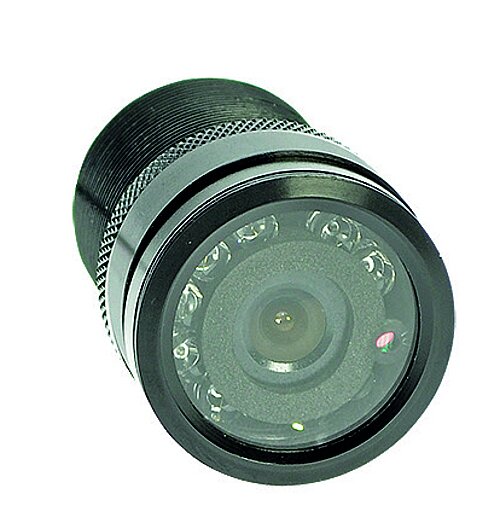

Waterproof pin camera

DBC 114033 P

Colour pin camera in robust die-cast aluminium housing.
Resistant to vandalism and moisture IP69K.
Wide viewing angle 120°



request product find a merchant
    • 1/3" CCD colour camera
    • 9 infrared LEDs for uniform illumination in the dark (max. 3 m)
    • High light sensitivity (0 lux)
    • Electronic brightness adjustment
    • Automatic electronic iris
    • Wide viewing angle (120°)
    • Resistant to vandalism and moisture (IP69K)
    • Weatherproof die-cast aluminium housing
  • Image sensor 1/3 " CCD sensor
    resolution 568,000 pixels ; 600 TV lines
    Viewing angle 120°
    Light sensitivity 0 lux
    Guiding lines no
    Connection Mini DIN
    Protection class IP 69K
    Operating temperature -30 °C to + 70 °C
    Vibration resistance 4,5 G
    Power supply 12 V
    Power consumption max. 2.76 W
    Dimensions 59x35 mm
    Weight 400 g
    Test mark, certificates ECE-R10

  • DBC 114033 P - Camera



    optional (not included in the scope of delivery):

    • WPC 5 (20 m connection cable)
Technical changes and errors excepted.
