Colour camera waterproof IP69K

DBC 1140179

Aerodynamic, compact, waterproof colour camera. Ideal mounting options: Can be mounted on the side, rear, front, top or bottom of the vehicle.

request product find a merchant
    • Aerodynamic, compact, waterproof colour camera
    • Ideal mounting options: Can be mounted on the side, rear, front, top or bottom of the vehicle.
    • Can be used as a reversing camera, side camera or front camera
    • High-quality CMOS sensor
    • Requires extremely low light supply (0 lux)
    • IR LEDs for day & night vision
    • 140° viewing angle
    • Electronic car shutter
    • Built-in microphone
    • Vandal-proof, rust-protected die-cast aluminium housing (IP69K)
    • Incl. 20 m connection cable
  • Image 1/3" CMOS
    resolution PAL: 728(H) x 488(V) ; 500 TV lines
    Synchronisation system Internal SYNC
    Video output 1.0VP-p, 75 Ohm
    Signal/Noise Ratio better than 43.3 dB
    Operating temperature range - 20 °C ~ 70 °C
    Storage temperature - 30°C ~ 80°C
    Power supply 12 V
    Protection class IP69K
    Viewing angle 140°
    Light sensitivity 0 lux
    Dimensions (LxWxH) 75 x 59 x 43 mm

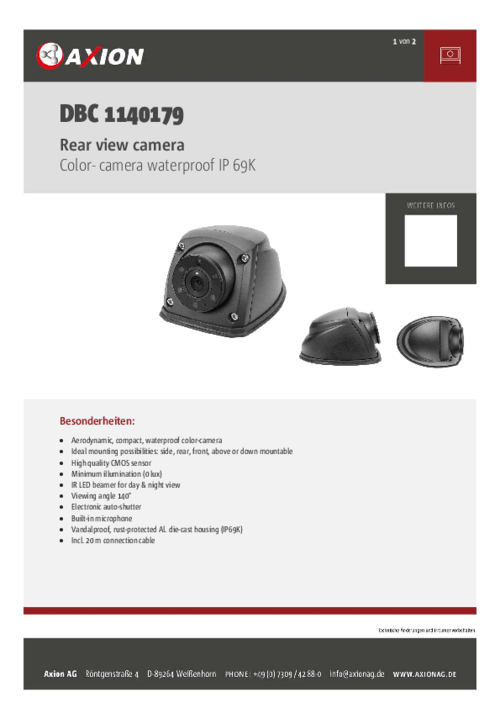

  • Download
Technical changes and errors excepted.
