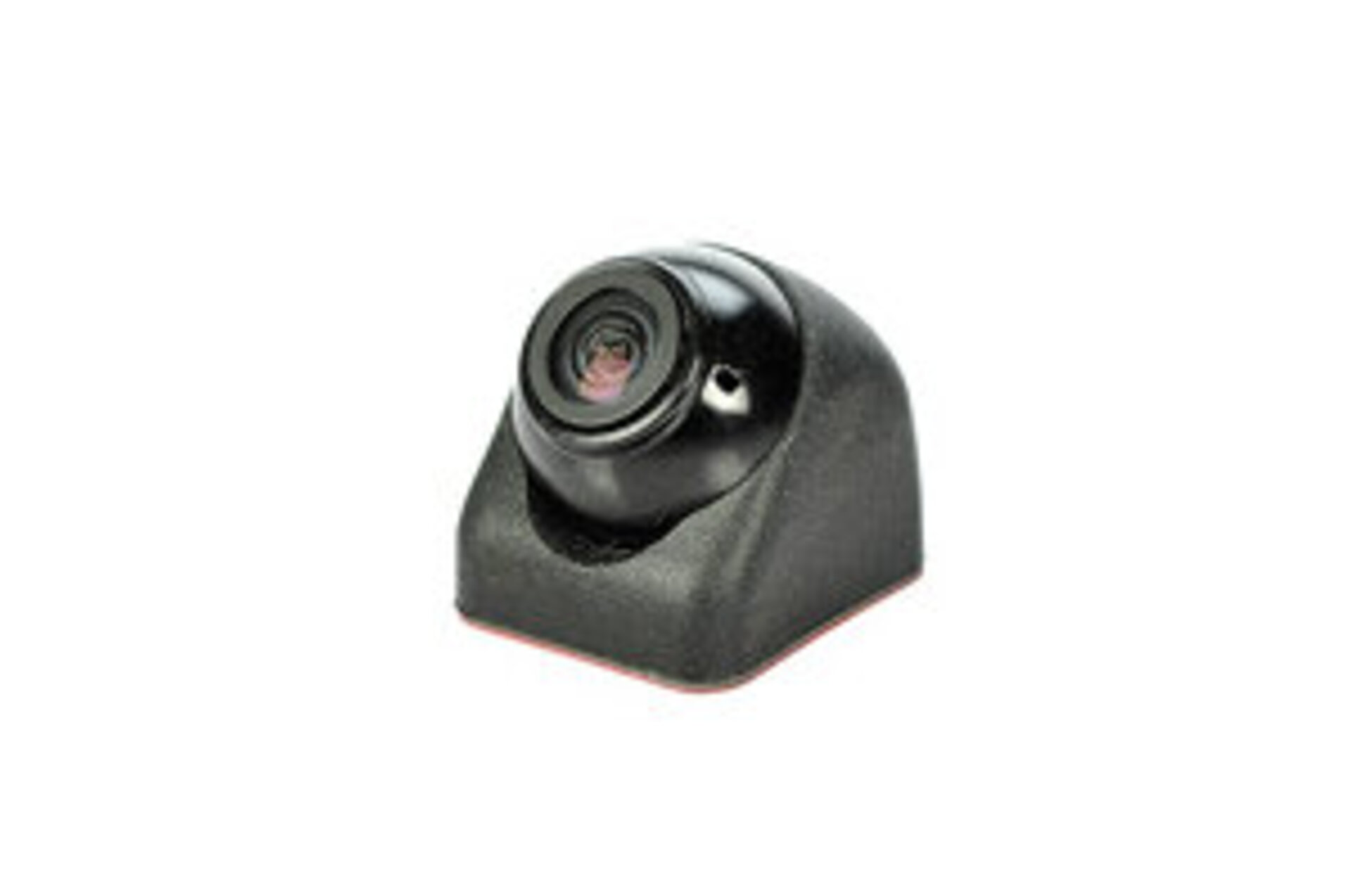

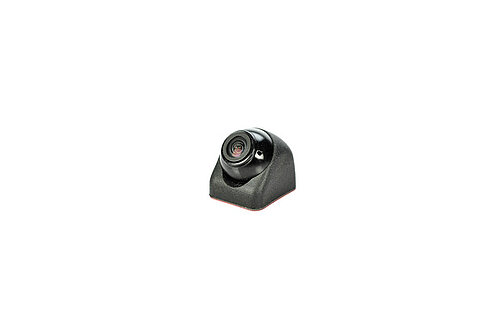

Universal mini ball camera

DBC 114025 MB

Versatile mounting options thanks to various mounting adapters
Large viewing angle (160° diagonal)
IP68 protection class

- Also available with parking lines

request product find a merchant
    • Universal mini ball camera
    • Large viewing angle (160° diagonal)
    • IP68 protection class
    • Light sensitivity 0.5 lux
    • Very small design (19 mm Ø)
    • Easy to install
    • Wide range of mounting options thanks to various mounting adapters
  • Image sensor1/4 " CCDS sensor
    resolution921,000 pixels
    Viewing angle160° (H: 130°/V:80°)
    Focal length
    Light sensitivity0.5 lux
    Video systemNTSC
    Image mirroringyes
    ConnectionRCA
    Protection classIP 68
    Operating temperature-30 °C to + 70 °C
    Vibration resistance
    Shock resistance
    Power supply12 V
    Power consumptionmax. 40 mA
    Dimensions (W x H x D)19 mm
    weight20 g
    Test marks, certificatesECE-R10

  • DBC 114025 MB - Camera

    8 m connection cable (RCA)

    Various mounting adapters

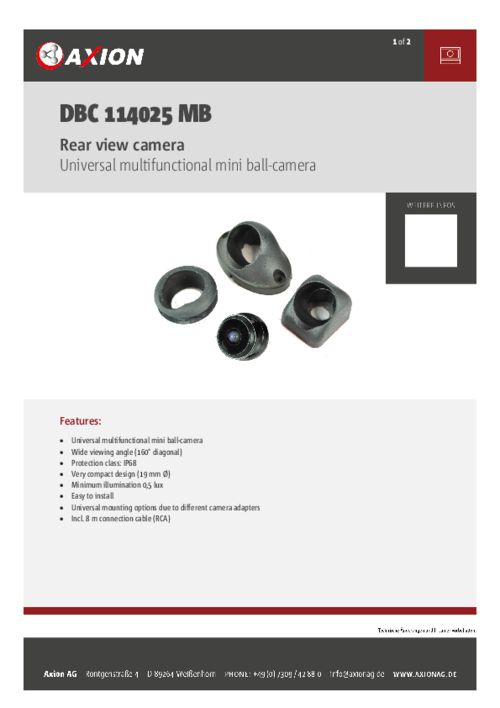

  • Download
Technical changes and errors excepted.
