Digital image recording for greater security:

The demand for more security is becoming increasingly important worldwide.
Surveillance of buildings, streets or business premises is already widespread today.
It is not only intended to document events, but above all to act as a deterrent.
There is a growing need to utilise these surveillance options in vehicles.
In the transport of valuables, official vehicles of authorities, ambulances, coaches and in the private sector, monitoring is making more and more sense.
Events become traceable in terms of when - what - where - how they happened.

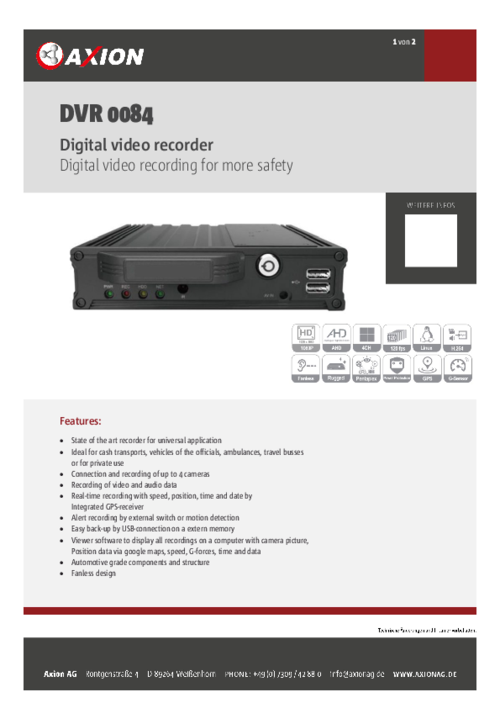

Axion has developed a state-of-the-art recording device for universal use, the DVR 0084.

Your valuable data is stored securely:

• Connection and simultaneous recording of up to 4 cameras
• Recording of audio and video data
• High resolution - H.264 4-channel at 120ips
• Wear-free recording on 2.5" HDD hard drive or SSD
• Real-time recording with speed, position, time and date using the GPS receiver included in the scope of delivery
• Integrated G-sensor for recording the forces acting on the vehicle in the event of an incident
• Alarm-controlled recording possible via button or motion detection
• Data can be easily read out to external memory via USB port
• Simple viewer software for analysing the data on the computer with display of camera images, GPS position via google maps, speed, G-forces, time and date.
• Multi-tasking - simultaneous recording / playback / networking / backup
• Built-in buck-boost for camera power supply (input: 9 - 35 V / output: 12 V 1.5 A)
• Anti-shock & vibration resistant design
• Automotive components & system architecture
• Option: Possibility of data transmission to a control centre or external computer using an external modem or Wifi dongle (separate components required).
• Dimensions (W × H × D): 182 × 43.5 × 151 mm
