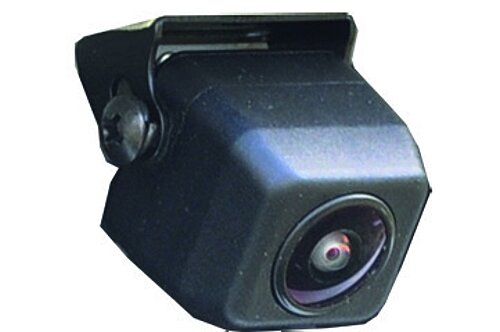

Front camera with perspective change

DBC 114029 FV

Versatile front camera with perspective change at the touch of a button
Views: Side & front view, side view, close-up front view (switchable)

  • Drivers can often only guess whether a dangerous situation is lurking around the next street corner. It is not uncommon for busy pavements and other obstacles to make it difficult to see around the corner or into the intersecting road.

    The DBC 114029FV front camera from AXION can help here. It offers a new, innovative camera technology that allows drivers to see round the corner, so to speak, in places where visibility is poor. The 21 x 22 x 24 mm small, versatile front camera can be installed in next to no time and offers a change of perspective at the touch of a button. Thanks to switchable side, front and close-up views and a large viewing angle (200° diagonal), poorly visible junctions can be optimally monitored and passing vehicles, cyclists, pedestrians or other obstructions are quickly recognised.

    • Versatile front camera with perspective change at the touch of a button
    • Views: Side & front view, side view, close-up front view (switchable)
    • Wide viewing angle (200° diagonal)
    • IP68 protection class
    • Light sensitivity 0.5 lux
    • Very small design
    • Easy to install
  • Image sensor 1/4 " CCDS sensor
    resolution 384,000 pixels ; 420 TV lines
    Viewing angle 200°
    Focal length
    Light sensitivity 0.5 lux
    Video system NTSC
    Image mirroring
    Guiding lines
    Connection cinch
    Protection class IP 68
    Operating temperature -40 °C to + 85 °C
    Vibration resistance 6 G
    Power supply 12 V
    Power consumption max. 60 mA
    Dimensions (W x H x D) 21x22x24 mm
    Weight
    Test marks, certificates ECE-R10
  • DBC 114029 FV - Camera

    5 m connection cable (cinch)

Technical changes and errors excepted.
