Reversing camera for Fiat Ducato, Peugeot Boxer, Citroen Jumper

DBC 114282 BL

Reversing camera integrated in specially developed brake light console for mounting on Fiat Ducato (also new Ducato from 2014), Peugeot Boxer and Citroen Jumper from model year 09/2006.
The intelligently designed brake light bracket utilises the existing brake light housing at the rear of the van.

request product find a merchant
    • Reversing camera integrated in specially developed brake light console for mounting on Fiat Ducato (also new Ducato 2014), Peugeot Boxer and Citroen Jumper
    • The intelligently designed brake light bracket utilises the existing brake light housing at the rear of the van
    • The small dimensions and aerodynamic design guarantee problem-free installation and operation
    • Quick and easy installation - no drilling required!
    • Resistant to vandalism and moisture thanks to extremely robust ABS plastic housing and integrated rubber seal (IP69)
    • High light sensitivity (0.01 lux)
    • 158° viewing angle
    • Automatic electronic shutter
    • High resolution with 800 TV lines
  • Image sensor1/4" CMOS sensor
    resolution800 TV lines
    Viewing angle158°
    Light sensitivity0.01 lux
    Video systemNTSC
    Guiding linesno
    ConnectionMINAX
    Protection classIP 69K
    Operating temperature-35 °C to + 80 °C
    Storage temperature-45 °C to + 90 °C
    Power supply10-32 V
    Power consumptionmax. 0.7W
    Dimensions (W x H x D)340x70x31 mm
    Weight
    Test marks, certificatesECE-R10



  • DBC 114282BL- Camera

    Camera housing for Fiat Ducato

    WPC 6 (20 m connection cable)

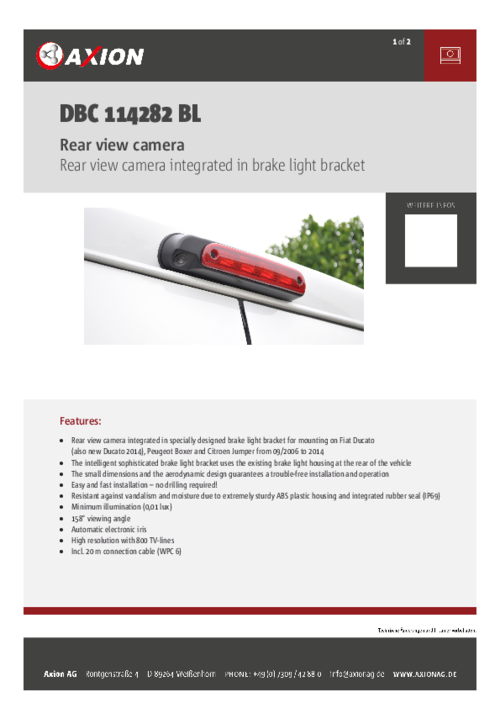

  • Download
Technical changes and errors excepted.
