2 in 1 reversing camera for Fiat Ducato, Peugeot Boxer, Citroen Jumper

DBC 1140182 DV Dual View

Reversing camera integrated in specially developed brake light console for mounting on Fiat Ducato, Peugeot Boxer and Citroen Jumper.

request product find a merchant
    • Reversing camera integrated in specially developed brake light console for mounting on Fiat Ducato, Peugeot Boxer and Citroen Jumper
    • DualView technology makes it possible to simultaneously display the view downwards and to the rear on one screen.
    • The camera provides a two-part image with a TOP-DOWN view of the rear of the vehicle for manoeuvring and a view of the traffic to the rear.
    • Wide field of view 200°(D) (172°(H) /130°(V))
    • Protection class IP69
    • 12 V power supply
    • Operating temperature: -30° to +70°C
  • Image sensor 1/3 inch CMOS
    resolution 580 TV lines
    Wide field of view 200° (diagonal), 172° (horizontal), 130° (vertical)
    Video system PAL
    Connection MINAX
    Protection class IP69K
    Power supply 12V
    Power consumption ≤ 2W
    Operating temperature range -30 °C to +70 °C
    Storage temperature range -40°C to +80°C

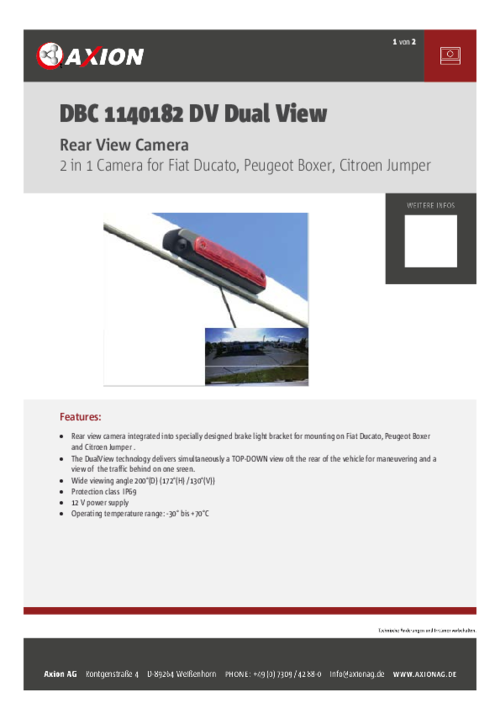

  • Download
Technical changes and errors excepted.
