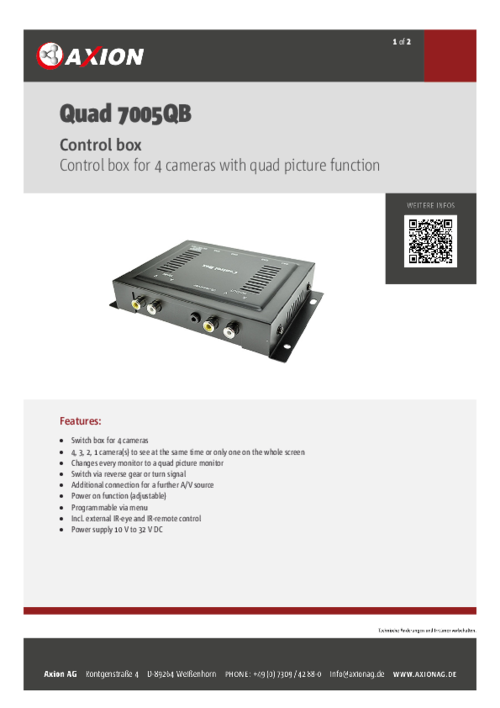

Control box for 4 cameras with quad image display
Quad 7005QB
Switch box for 4 cameras.
View 4, 3, 2, 1 camera(s) simultaneously or one on the entire monitor.
Turns each monitor into a quad screen monitor.
-
- Switch box for 4 cameras
- View 4, 3, 2, 1 camera(s) simultaneously or one on the entire monitor
- Turns each monitor into a quad screen monitor
- Switching with reverse gear or indicator Additional connection for another A/V source
- Power On function (adjustable)
- Programming via menu
- Incl. external IR eye and IR remote control
- Power supply 10 V to 32 V DC
-
- Real-time quad image
- 4 x camera inputs: AXION 4-pin mini DIN sockets
- 1 x audio/video input (RCA)
- 1 x audio/video output (RCA)
- PAL/NTSC switchable
- Image display: CAM1, CAM2, CAM3, CAM4, AUX, Split2, Split3, Split4, PIP...
- Power on function (adjustable)
- On screen menu:
- Hold time for automatic scanning & automatic switch-on
- Sources in split mode
- Mirror & normal picture function
- Camera name
- Automatic scanning
- Distance scaling
- Video system (NTSC/PAL)
- Automatic switch-on as soon as a switch-on signal is applied
- Includes extended IR eye and remote control
- Vibration-resistant up to 5.5 G
- Housing: Steel
- Supply voltage: 10 - 32 V DC
- Power consumption: < 24 W
- Operating temperature: -30 °C to +75 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (WxHxD): 154x28x105 mm
- Weight: approx. 500 g
Technical changes and errors excepted.
