Rear view camera interface for VW, Skoda, Seat (MQB platform)

CA-VWM01

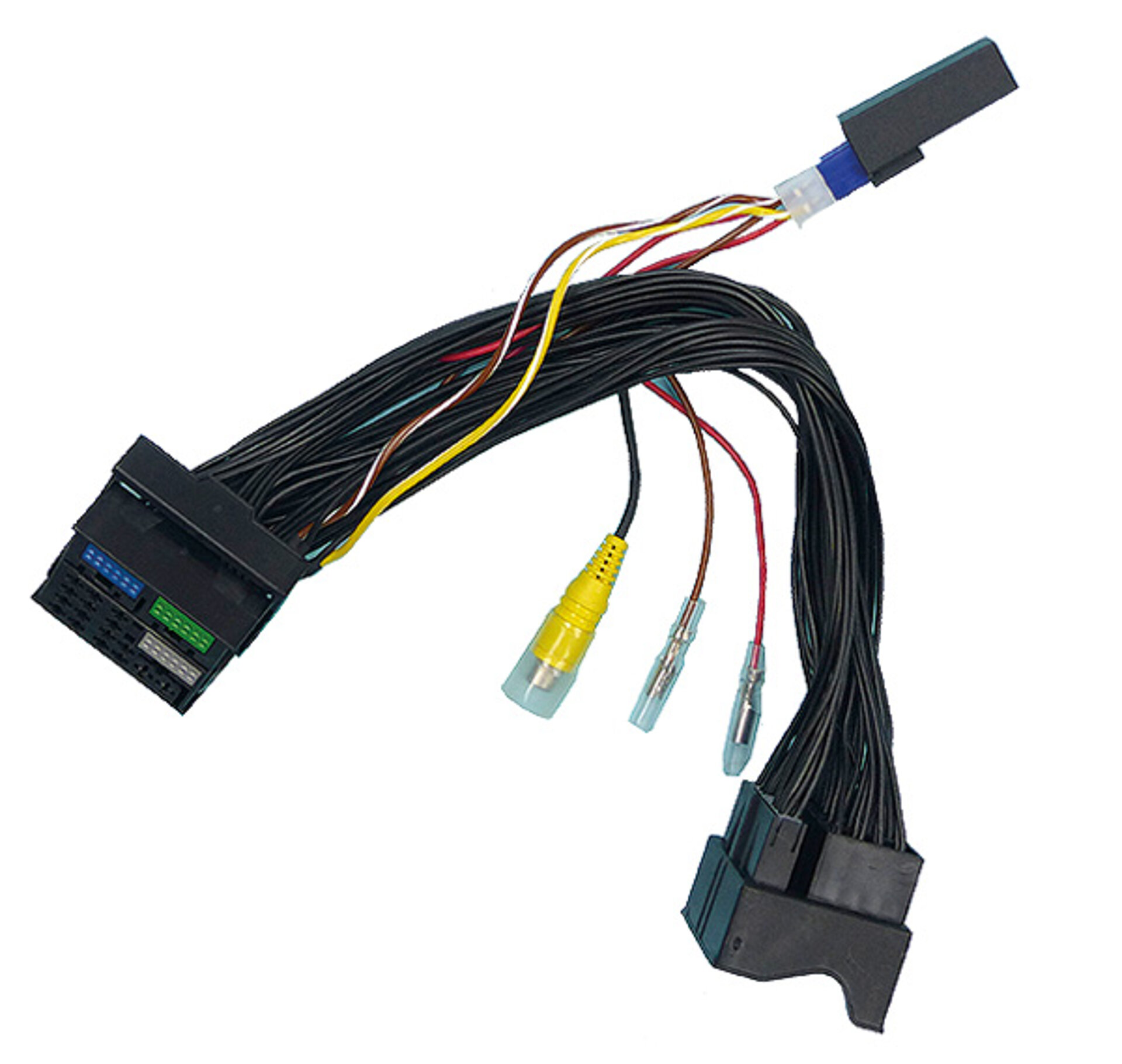

Interface kit for feeding a reversing camera to original VW, Skoda, Seat radios of the MIB generation Plug & Play cable set with CAN BUS interface.

request product find a merchant
    • Interface kit for feeding a reversing camera to original VW, Skoda, Seat radios of the MIB generation
    • Plug & Play cable set with CAN BUS interface
    • The CAN BUS interface provides the following signals:+12V reversing signal; +12V ignition plus, ground
    • The following original radios can currently be coded to the reversing camera using VCDS or VW diagnostics:
      VW: Composition Media, Discover Media, Discover Pro,
      Skoda: Bolero, Amundsen, Columbus
      Seat: Media System Plus, navigation system
    • 1 camera input (cinch), 50 cm cable length
    • Maximum total current of both outputs together 200mA

    Plug & Play installation - no modification to the original vehicle wiring harness necessary!
    Supplies all necessary signals - no annoying searching and cable pulling!
    Saves time and therefore costs!

    (*Only to be used in conjunction with NTSC cameras)

  • For the following vehicle models:

    • VW T6 (2015-)
    • VW Caddy 4 (2015-)
    • VW Golf 7 (AU, 2012-)
    • VW Passat B8 (3G, 2014-)
    • VW Polo (6C, 2014-)
    • VW Sharan II (7N, 2015-)
    • VW Touran II ( 5T, 2015-)
    • VW Crafter (2017-)
    • Skoda Octavia III (2014-)
    • Skoda Superb III ( 2015-)
    • Seat Leon (5F)
    • Audi A3 (8V, 2012-)
Technical changes and errors excepted.
