Interface for retrofitting cameras for VW/AUDI/PORSCHE MIB systems
MI6-MIB-PNP
The MI6-MIB-PNP interface enables the simple retrofitting of up to 2 cameras (front and rear view camera) to the original factory system of the respective car manufacturer.
The connection of the interface is "Plug & Play" - no modification to the original vehicle wiring harness is necessary.
The interface also offers 2 camera inputs on both sides.
It is automatically switched from all operating modes to the existing factory and retrofit cameras as required.
and automatically switches back to the previous operating mode at the end of the manoeuvring process.
-
- Picture-in-picture (PIP) modes for combining aftermarket camera image(s)
- Dynamic parking aid lines with calibration function
- Simultaneous use of picture-in-picture factory parking distance sensor display and dynamic parking aid lines
- Own on-screen display for setting changes
- Rear view camera input
- Automatic switching to reversing camera input when reverse gear is engaged from all operating modes
- Front camera input
- Side camera inputs
- Side or front camera activation via indicator function
- Manual switching to cameras possible
- 2 switching outputs (+12V max. 1A), separately adjustable switching criteria (CAN, ignition, camera, reverse gear)
- Compatible with all factory video applications
- USB update port for software updates
-

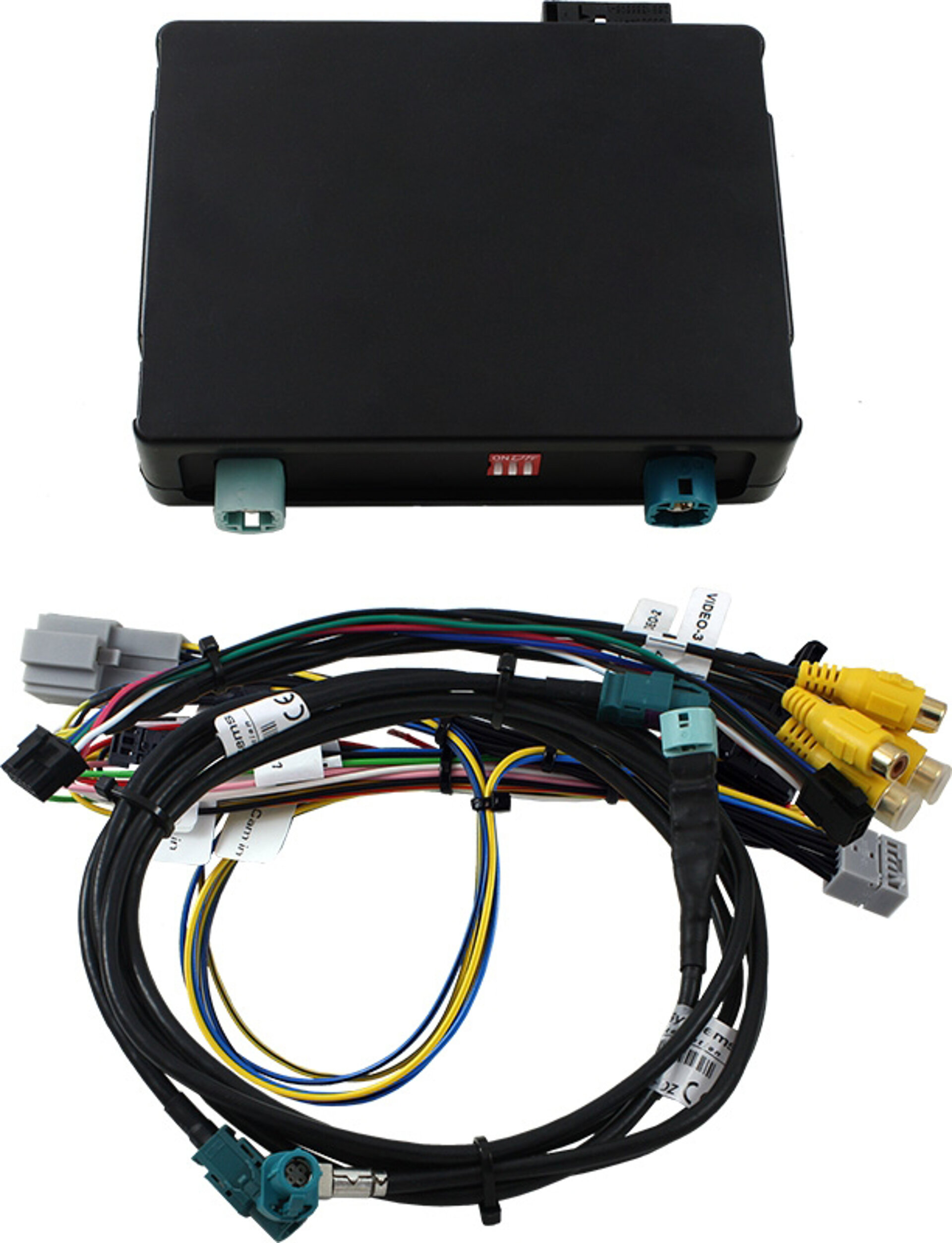

- Interface box
- Plug & Play cable set
- 2x LVDS cables
- Instruction manual
-
Audi with MMI Navigation Plus with MMI Touch 7" or 8.3" - MIB/MIB II main unit:
- A3 (8V) from 05/2012-
- A4 (8W) from 08/2015-
- Q7 (4M) from 03/2015-
Porsche with PCM 4.0:
- Boxster
- Cayenne
Skoda with MIB - Amundsen - 8 inch monitor:
- Octavia3 (5E) MY 2017 -
VW with MIB/MIBII Composition Media/Discover Media - 5.8 inch and 6.5 inch monitor:
- Golf7 MY 2015-
- Golf7 Sportsvan MY 2015-
- Passat (B8) MY 2016-
VW with MIB/MIBII Discover Pro - 8 inch monitor:
- Passat (B8) MY 2016-
