Interface for retrofitting a reversing camera incl. dynamic parking lines for AUDI MMI3G / MMI3G+ systems
MI5-MMI3G-PNP

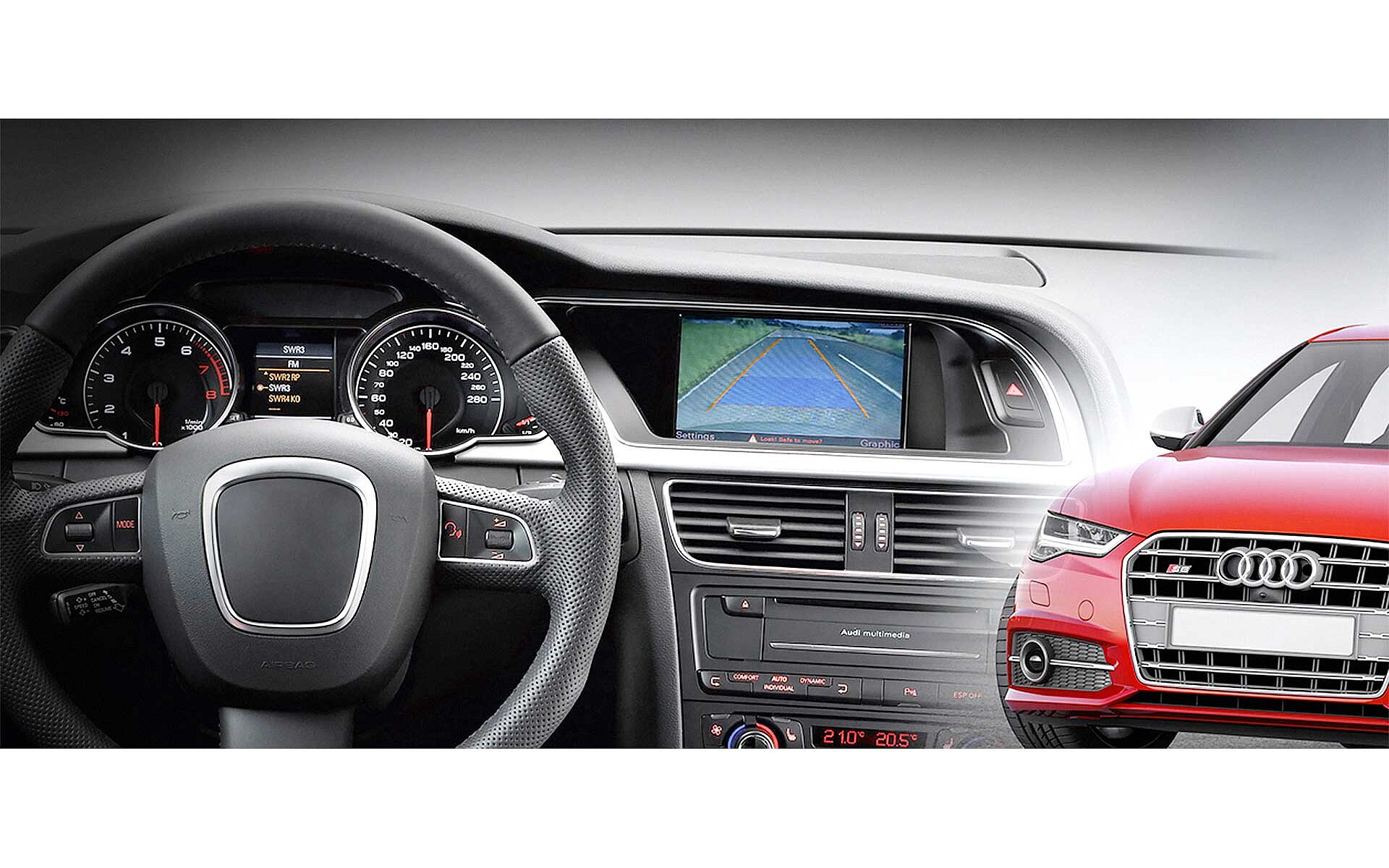

The MI5-MMI3G-PNP interface enables the simple retrofitting of up to 2 cameras (front and rear view camera) to the original factory system of the respective car manufacturer.
The connection of the interface is "Plug & Play" - no modification to the original vehicle wiring harness is necessary.
It automatically switches from all operating modes to the existing factory and retrofit cameras as required and automatically switches back to the previous operating mode once the manoeuvring process is complete.
-
- Dedicated on-screen display for setting changes
- Dynamic parking assistance lines
- Reversing camera input
- Automatic switching to reversing camera input when reverse gear is engaged from all operating modes
- Front camera input
- Manual switching to reversing camera possible (only for vehicles with PDC button)
- 2 switching outputs (+12V max. 1A), separately adjustable switching criteria (CAN, ignition, camera, reverse gear)
- Compatible with all factory video applications (e.g. reversing camera, TV tuner)
- USB update port for software updates by the end user
-
Quiescent current <0.1mA Working current ~190mA Power consumption ~2.6W Voltage working range 10.5V - 14.8V Operating temperature range -30°C to +80°C weight 208 g Dimensions (W x H x D) 103 x 30 x 105 mm -

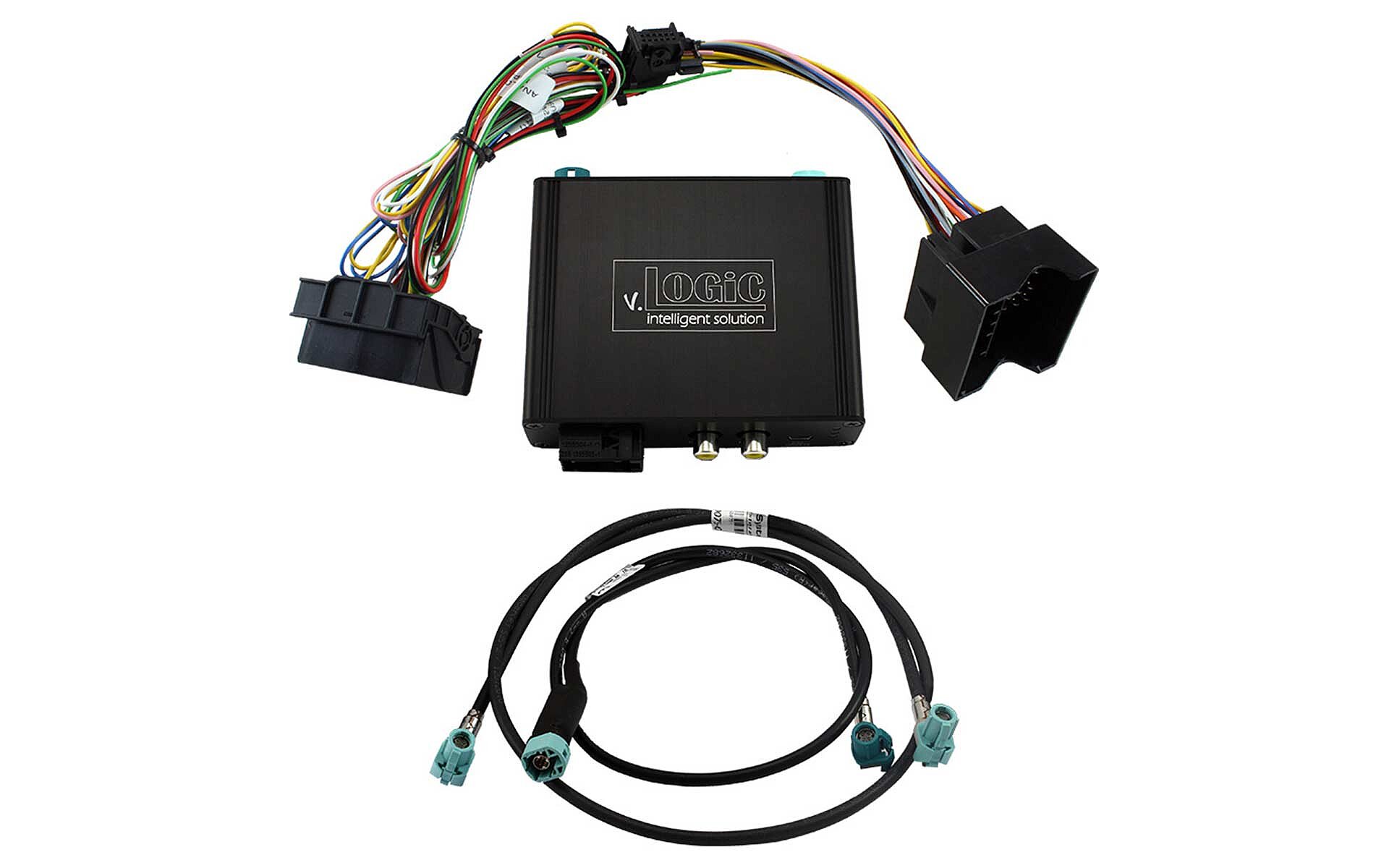

- Interface box
- Plug & Play cable set
- 2 x LVDS cable
- Instruction manual
-

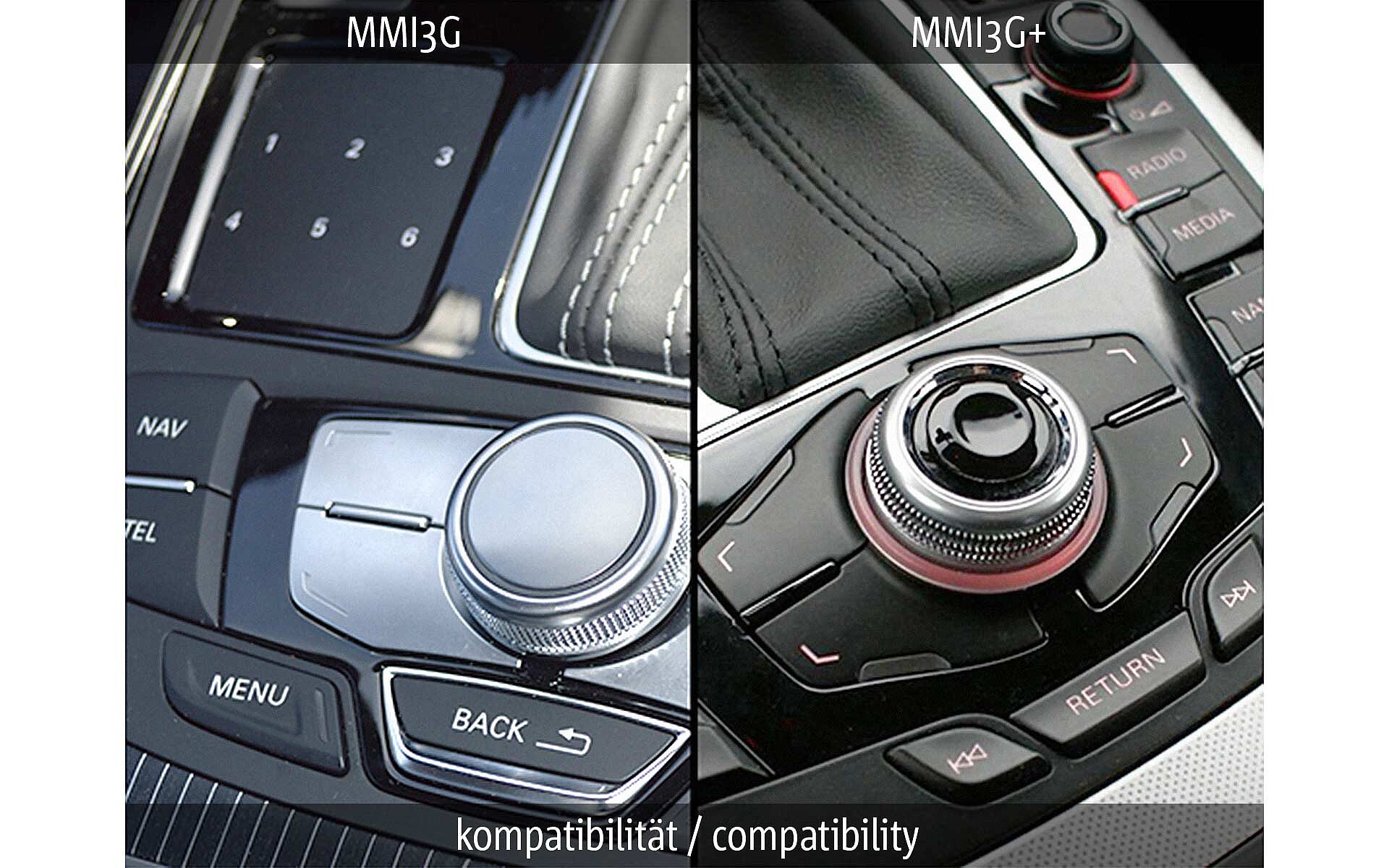

Audi with MMI Navigation (Plus) 7" or 8" - MMI3G High and Basic, MMI3G+, no RMC HUs:
- A4 (8K) from 05/2009 to 08/2015
- A5 (8T) from 11/2008 to 06/2016
- A6 (4F) from 08/2008 to 03/2011
- A6 (4G) from 04/2011 to 09/2014
- A7 (4G) from 07/2010 to 05/2014
- A8 (4E) from 09/2008 to 03/2010
- A8 (4H) from 03/2010-
- Q5 (8R) from 11/2008 to 2017
- Q7 (4L) from 05/2009 to 03/2015
Technical changes and errors excepted.
