Mercedes-Benz Combiinstrument / Cluster Display
ICUC V Lines (J1C)
By Mercedes vehicles which are fitted with the ICUC V Lines (code J1C) a rear-view camera can be retrofitted and displayed on the Cluster display.
Mercedes
Solutions for Mercedes trucks
AXION solutions for retroffiting commercial vehicles of Mercedes
Adapter for preparation J1C for retrofitting an AXION rear-view camera
Mercedes-Benz Monitorradio (TCC)
There are two variants for vehicles which are equipped with the TCC-Monitor radio. By vehicles with the pre-fitting code J9J you need the adapter CA-MB2 and for vehicles without this preperation you need the adapter CA-MB1, to retroffit a rear-view camera.
Adapter radio system to retrofit an AXION rear view camera
Rear-View Cameras Perfect for retrofitting in connection with the Adaptions above
W-light LED light strip 60W

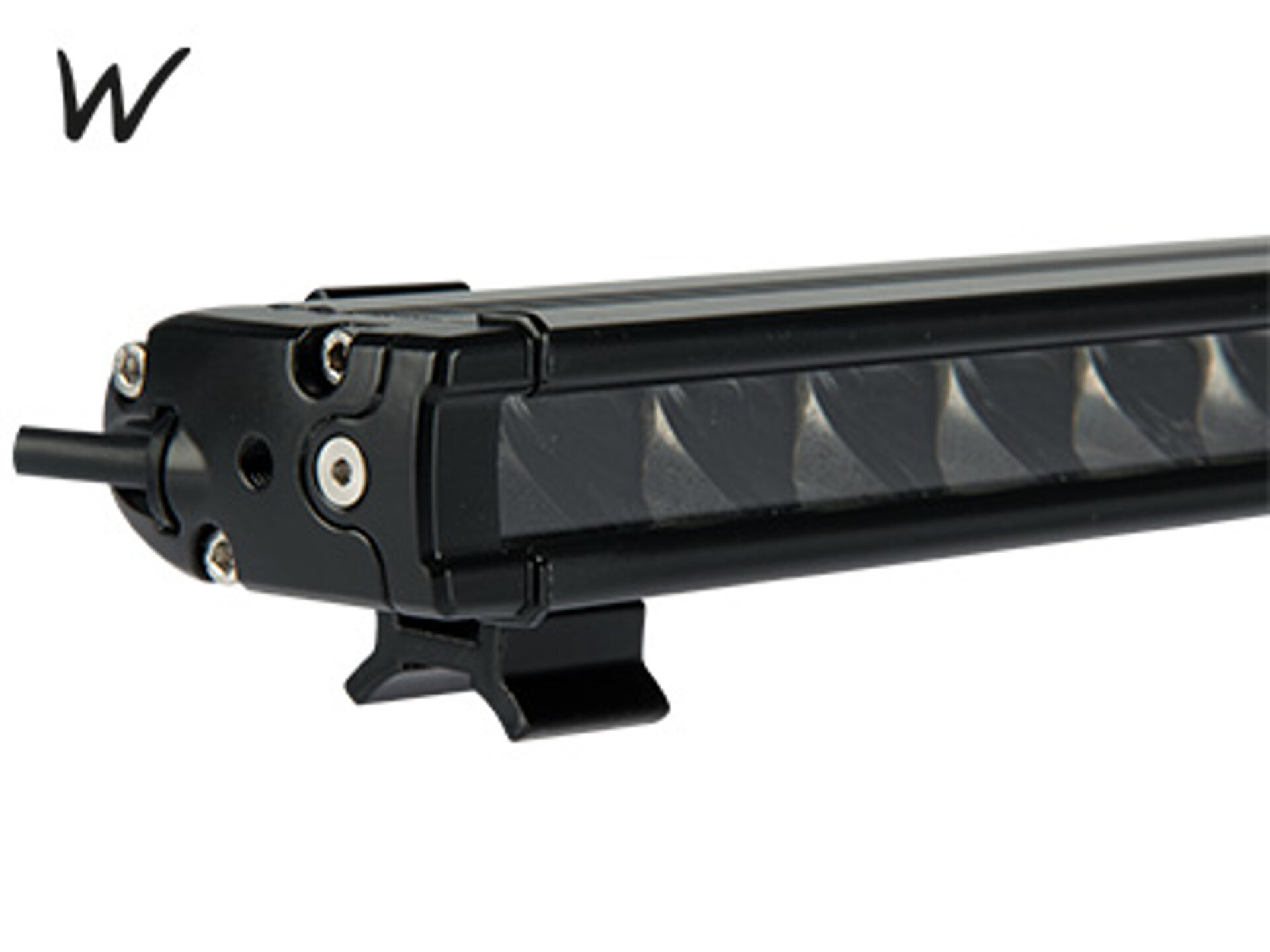

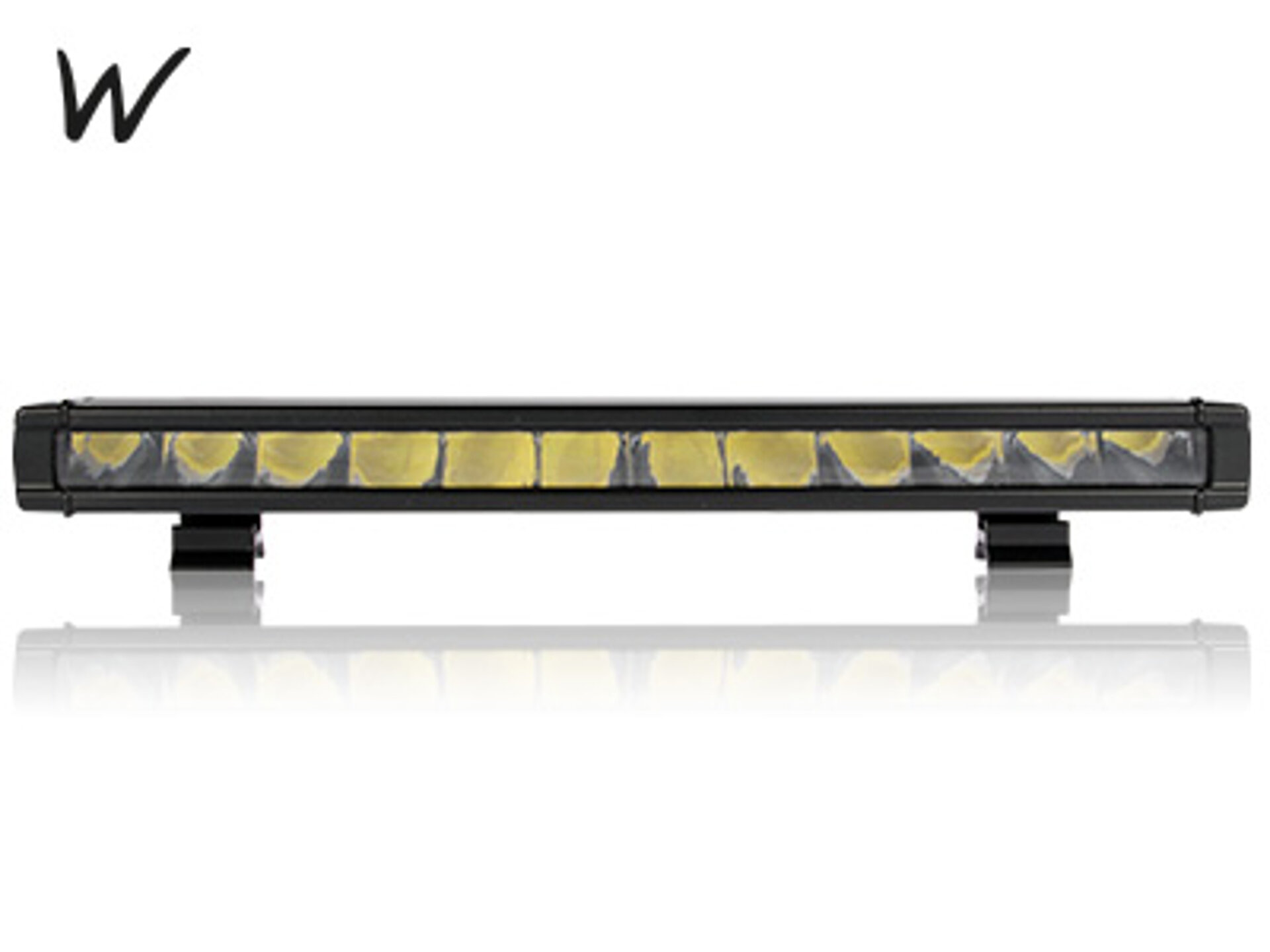

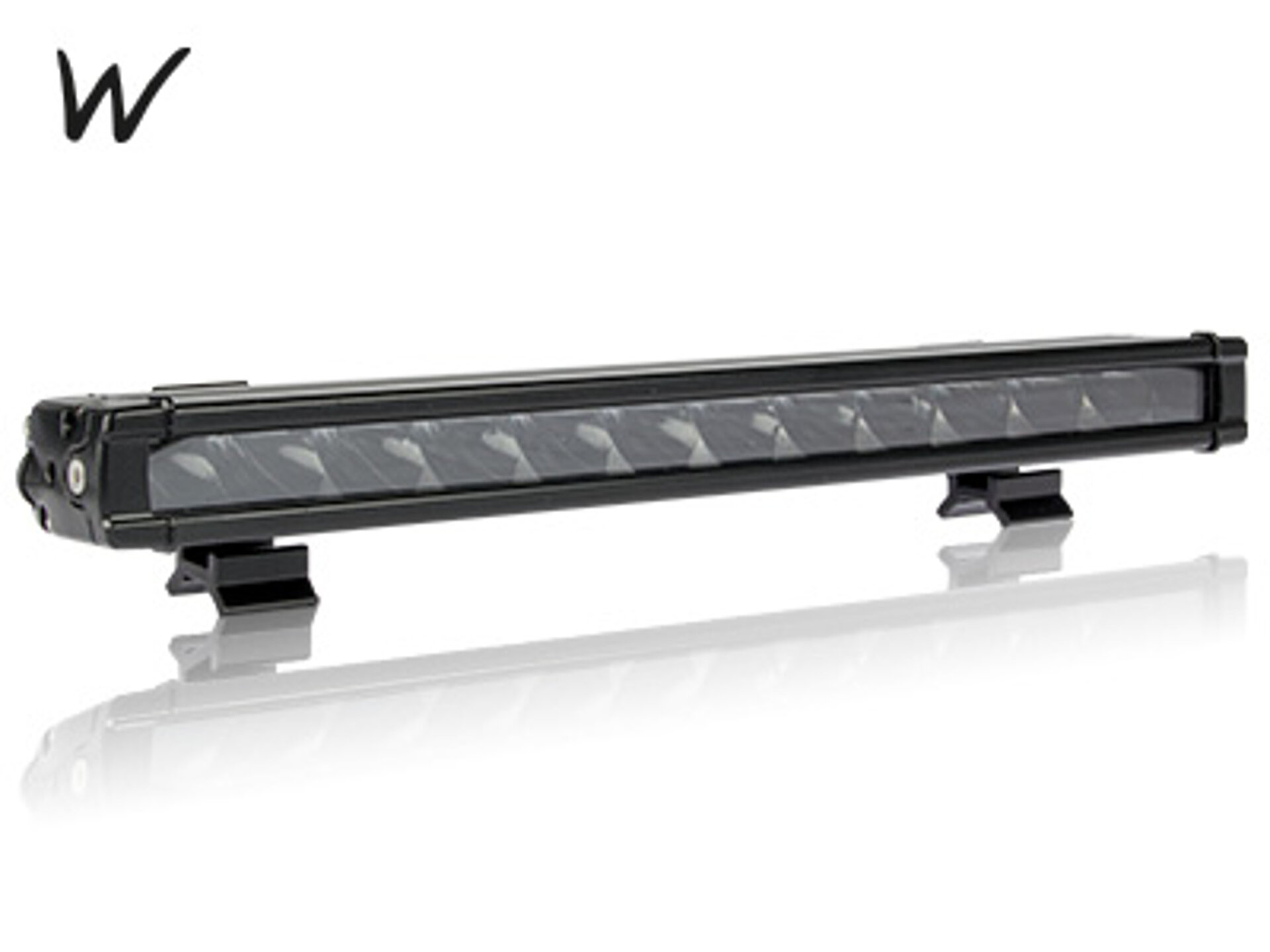

1605-NS3821 W-light LED light strip 60W
W-light LED light strip 60W
-
- Die-cast aluminium housing
- Vibration and shock resistant

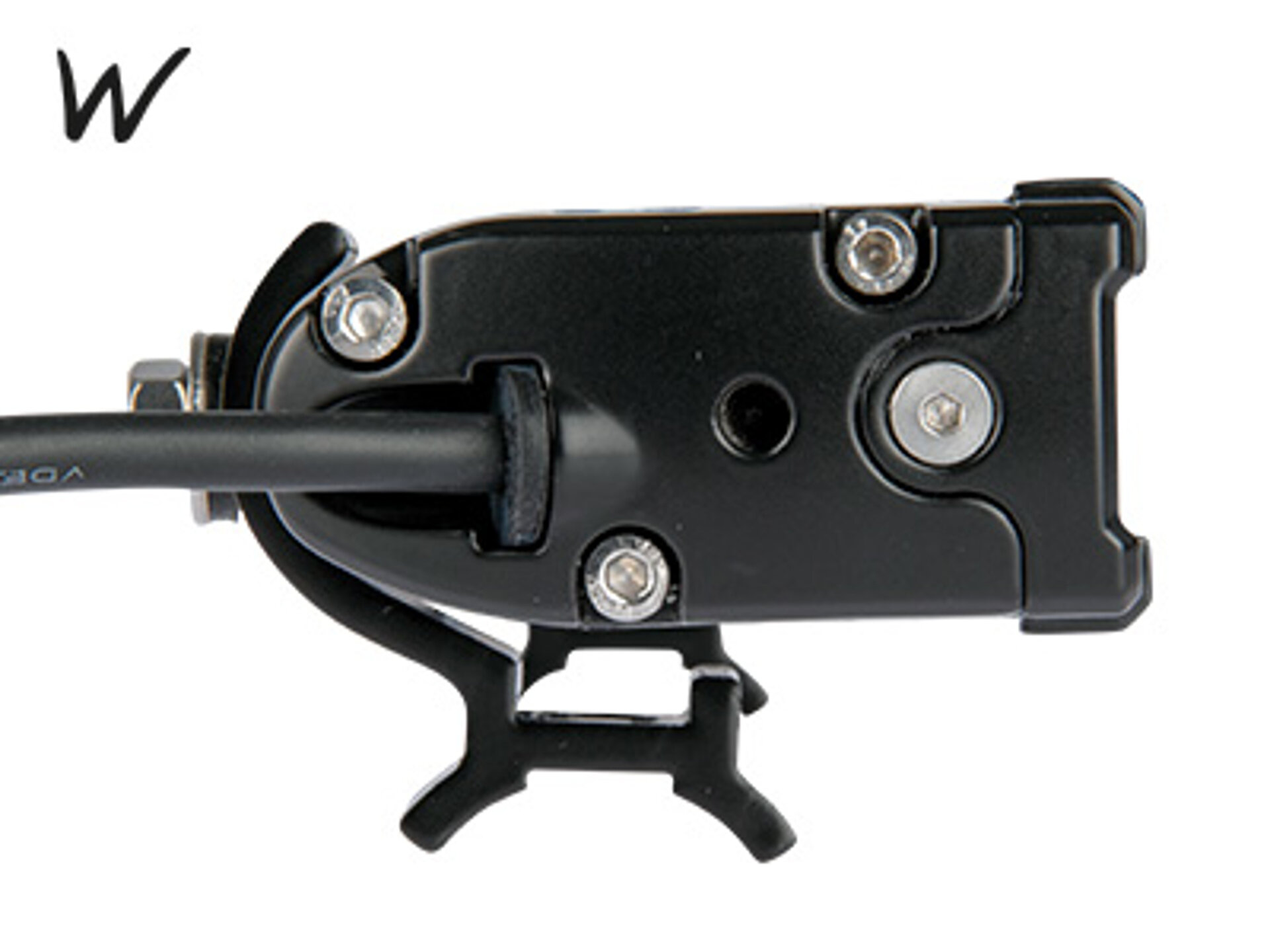

- Lateral and adjustable bottom bracket
- Approvals: R10, R112 (E9)
- Polycarbonate disc and headlight lens
- DT contact included
- Slim model, suitable for the installation of a grille
- Approved as a high beam (note: the Swedish Road Safety Authority requires additional high beams to be fitted in pairs, i.e. 2 are required)
Estimated installation time: 1 hour
-

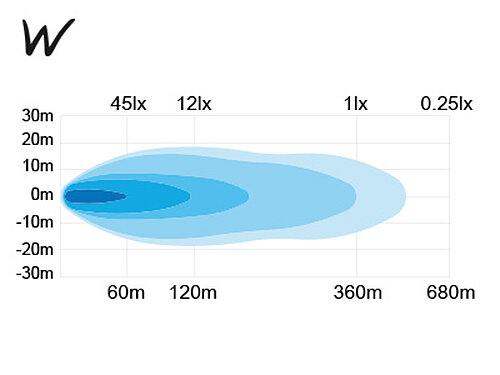

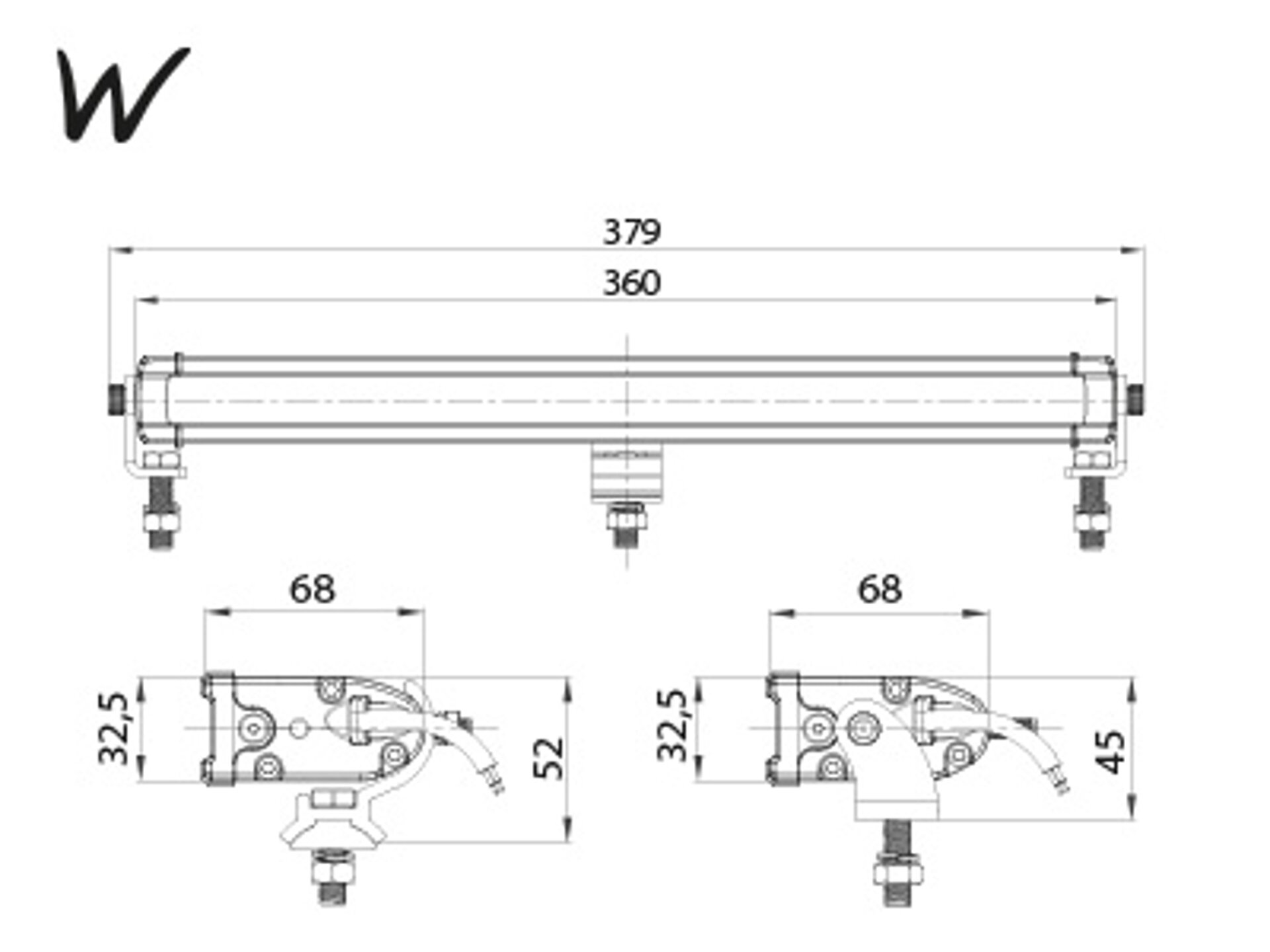

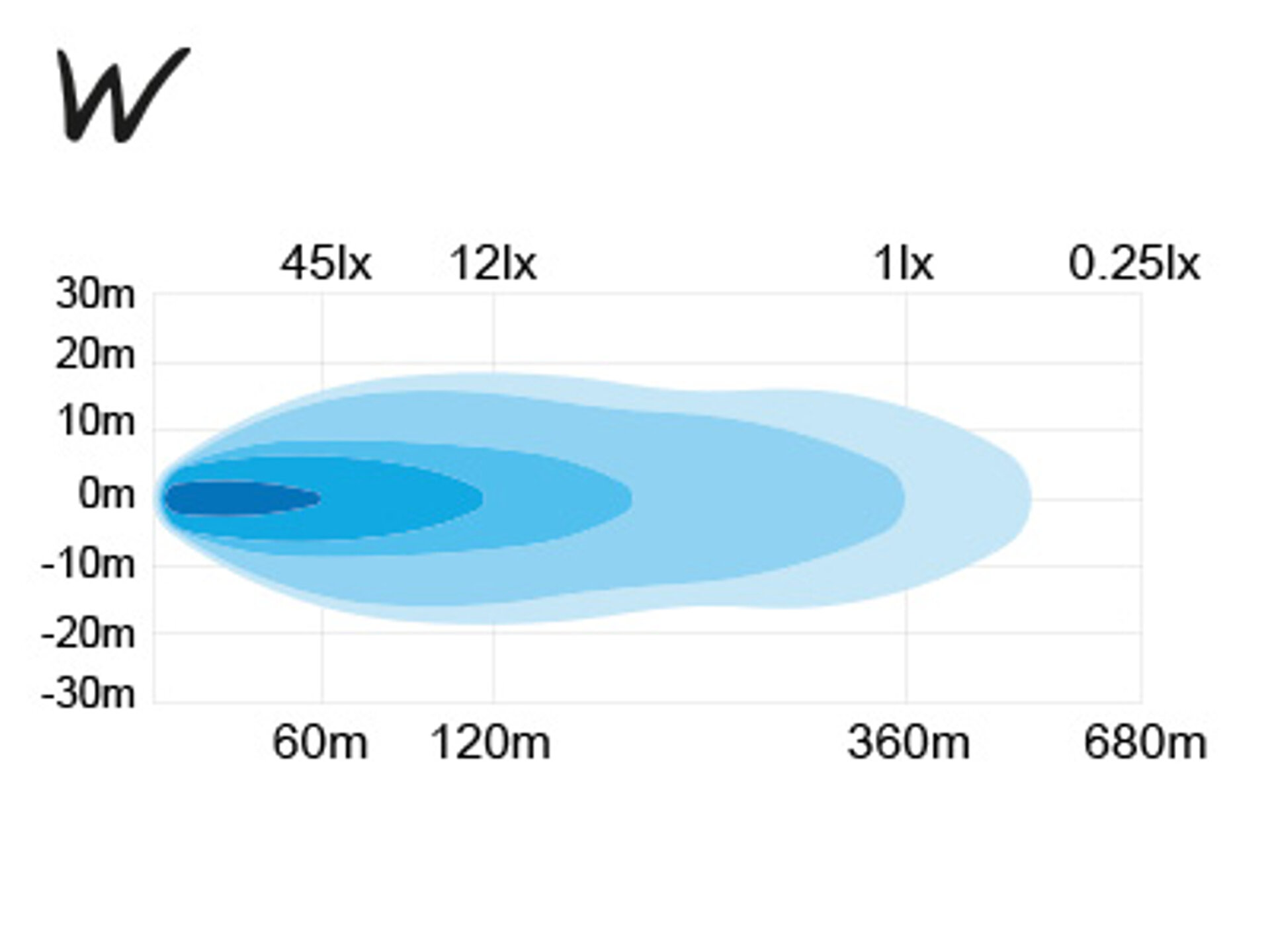

Consumption 60W, 12x5W Osram P8 LED diodes Light colour 5,700 Kelvin Ref 30 Lumen 5,040 (theoretical) Lumen 3,186 (measured) Illumination type Beam, high beam Protection class IP68 Operating temperature -40° to +85°C Operating voltage 10-32V DC dimensions 360x32.5x68mm
Technical changes and errors excepted.
